Adet bazlı fiyat
- 1+ adet$6.62
- 10+ adet$6.24
- 100+ adet$5.89
- 500+ adet$5.55
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Mounting Feature
- Bulkhead - Front Side Nut
- Polarity
- Standard
- Cable Group
- RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
- Frekans
- 3GHz
- Body Finish
- Tin
- Includes

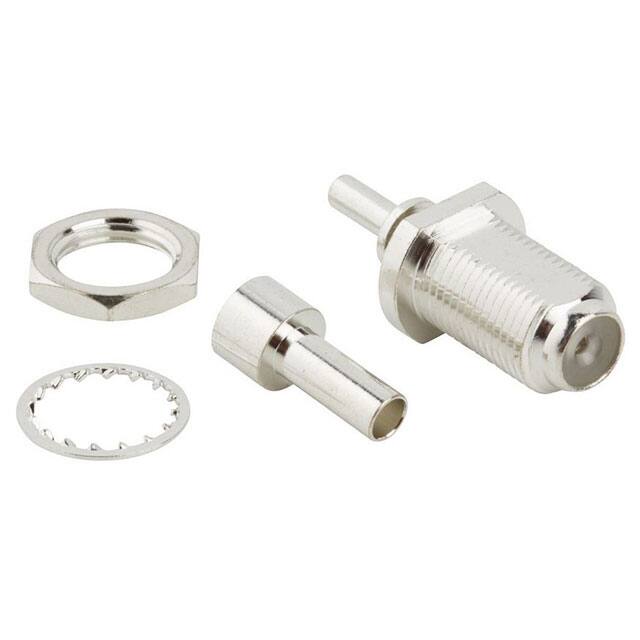

- 4 pcs - 1 Connector, 1 Ferrule, 1 Lockwasher, 1 Nut
- Fabrika Tedarik Süresi
- 9 Weeks
- Min. Çalışma Sıcaklığı
- -40°C
- Contact Termination
- Crimp
- Fastening Type
- Threaded
- Body Material
- Brass
- Contact Materials
- Copper
- Maks. Çalışma Sıcaklığı
- 60°C
- Montaj Tipi
- Panel Mount
- Housing Color
- Silver
- Center Contact Plating
- Tin
- Body Plating
- Tin
- Empedans
- 75Ohm
- Frequencymax
- 1GHz
- Plating
- Tin
- Yayın Yılı
- 2005
- Radyasyon Dayanımı
- No
- Connector Style
- F Type
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Orientation
- Straight
- Dielectric Material
- Polypropylene (PP)
- Connector Type
- Receptacle, Female Socket
- RoHS Durumu
- RoHS Compliant
- Number Of Ports
- 1
- Parça Durumu
- Active
- Shield Termination
- Crimp
- Mating Cycles
- 500
- Insertion Loss
- 0.1dB
- Center Contact Material
- Beryllium Copper
- Contact Plating
- Tin
- Ambalaj
- Bulk
- Çalışma Sıcaklığı
- -40°C~140°C
- Montaj
- Bulkhead, Front Side Nut, Panel
- Terminal
- Crimp
