Adet bazlı fiyat
- 1+ adet$19.76
- 10+ adet$18.64
- 100+ adet$17.59
- 500+ adet$16.59
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Mating Cycles
- 500
- Mounting Feature
- Bulkhead - Front Side Nut
- Orientation
- Straight
- Ambalaj
- Bulk
- Fabrika Tedarik Süresi
- 10 Weeks
- Additional Feature
- APPLICABLE CABLE: RG-58/U, INSERTION LOSS MAX AT 9 GHZ
- Din Conformance
- NO
- Mil Conformance
- NO
- Iec Conformance
- NO
- Includes

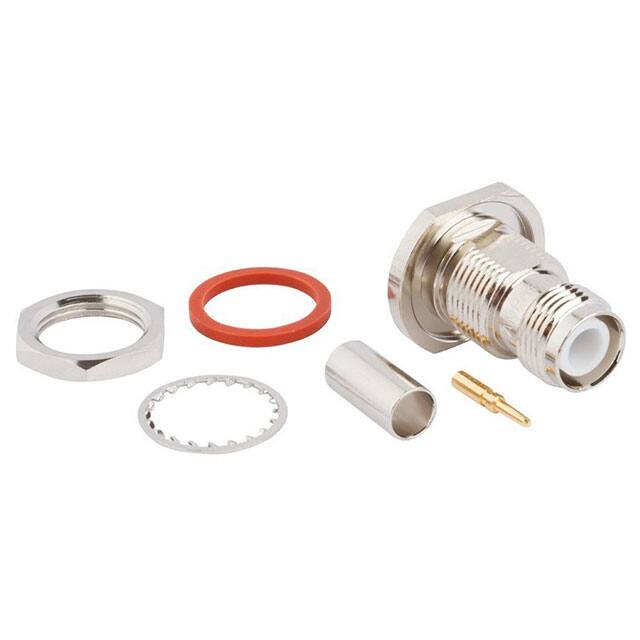

- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Number Of Ports
- 1
- Contact Materials
- Brass, Copper
- Yayın Yılı
- 2000
- Center Contact Plating
- Gold
- RoHS Durumu
- RoHS Compliant
- Cable Group
- RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
- Body Material
- Brass
- Contact Termination
- Crimp or Solder
- Montaj
- Bulkhead, Cable, Front Side Nut, Panel
- Fastening Type
- Threaded
- Insertion Loss
- 0.18dB
- Çalışma Sıcaklığı
- -65°C~165°C
- Nominal Gerilim
- 500V
- Connector Style
- RP-TNC
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Filter Feature
- NO
- Connector Type
- Jack, Male Pin
- Montaj Tipi
- Panel Mount
- ECCN Kodu
- EAR99
- Kurşunsuz Kodu
- yes
- Vswr
- 1.3
- Insulation Materials
- POLYTETRAFLUORO ETHYLENE
- Kurşunsuz
- Lead Free
- Parça Durumu
- Active
- Shield Termination
- Crimp
- Housing Color
- Silver
- Empedans
- 50Ohm
- Body Finish
- Nickel
- Frekans
- 4GHz
