Adet bazlı fiyat
- 1+ adet$8.47
- 10+ adet$7.99
- 100+ adet$7.54
- 500+ adet$7.11
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

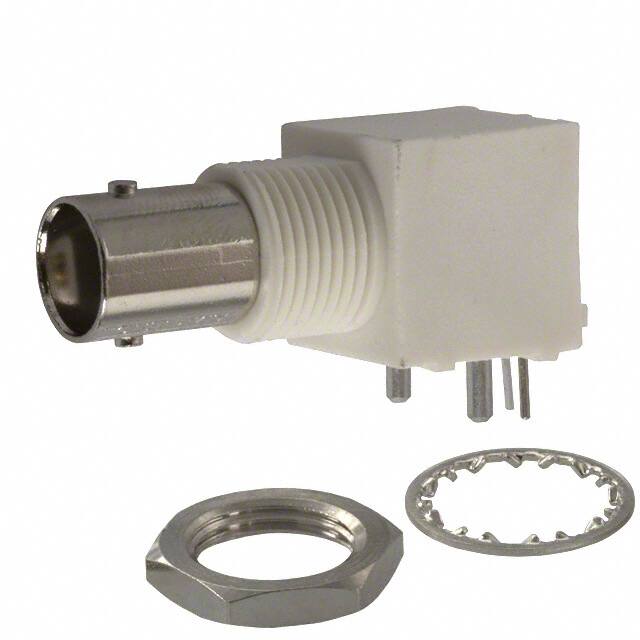

Teknik Özellikler
- Kurşunsuz
- Lead Free
- Insulation Materials
- NORYL
- Parça Durumu
- Active
- Body Breadth
- 0.625 inch
- Frekans
- 4GHz
- Polarity
- Standard
- Option
- GENERAL PURPOSE
- Empedans
- 50Ohm
- Body Finish
- Nickel
- Bodyshell Style
- RECEPTACLE
- Housing Color
- Silver, White
- Nominal Gerilim
- 500V
- Center Contact Material
- Phosphor Bronze
- Çalışma Sıcaklığı
- -55°C~85°C
- Insertion Loss
- 0.2dB
- Özellikler
- Board Guide, Isolated
- ECCN Kodu
- EAR99
- Connector Type
- Jack, Female Socket
- Montaj Tipi
- Panel Mount, Through Hole, Right Angle
- Connector Style
- BNC
- Dielectric Material
- Polypropylene (PP)
- Body Length Or Diameter
- 0.58 inch
- Filter Feature
- NO
- Center Contact Plating
- Gold
- Total Number Of Contacts
- 1
- JESD-609 Kodu
- e4
- Contact Materials
- Bronze
- Yayın Yılı
- 2005
- Reach Svhc
- Unknown
- Fastening Type
- Bayonet Lock
- Body Material
- Zinc Die Cast
- Contact Style
- COAX
- Contact Termination
- Solder
- Montaj
- Bulkhead, Panel, Through Hole
- RoHS Durumu
- RoHS Compliant
- Ambalaj
- Bulk
- Mounting Feature
- Bulkhead - Front Side Nut
- Orientation
- Right Angle
- Mating Cycles
- 500
- Frequencymax
- 1GHz
