Adet bazlı fiyat
- 1+ adet$4.52
- 10+ adet$4.26
- 100+ adet$4.02
- 500+ adet$3.79
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Connector Type
- Plug, Male Pin
- Montaj Tipi
- Free Hanging (In-Line)
- Connector Style
- BNC
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Filter Feature
- NO
- Gender
- Male
- ECCN Kodu
- EAR99
- Çalışma Sıcaklığı
- -65°C~165°C
- Insertion Loss
- 0.2dB
- Nominal Gerilim
- 500V
- Empedans
- 50Ohm
- Body Finish
- Nickel
- Housing Color
- Silver
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Frekans
- 4Hz
- Option
- GENERAL PURPOSE
- Weight
- 13.999987g
- Vswr
- 1.3
- Shield Termination
- Clamp
- Kurşunsuz
- Lead Free
- Insulation Materials
- POLYTETRAFLUORO ETHYLENE
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 10 Weeks
- Frequencymax
- 4GHz
- Number Of Ports
- 1
- Additional Feature
- APPLICABLE CABLES: RG-59/U; RG-62/U, INSERTION LOSS MAX AT 3 GHZ
- Din Conformance
- NO
- Mil Conformance
- NO
- Iec Conformance
- NO
- Includes

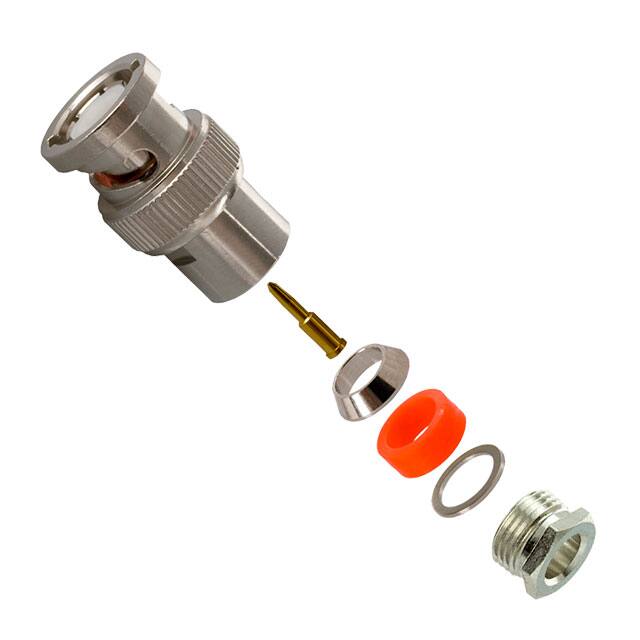

- 6 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Mating Cycles
- 500
- Ambalaj
- Bulk
- Orientation
- Straight
- RoHS Durumu
- RoHS Compliant
- Cable Group
- RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
- Reach Svhc
- Unknown
- Fastening Type
- Bayonet Lock
- Body Material
- Brass
- Contact Finish Mating
- NOT SPECIFIED
