Adet bazlı fiyat
- 1+ adet$10.34
- 10+ adet$9.76
- 100+ adet$9.20
- 500+ adet$8.68
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Cable Group
- RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
- Frekans
- 6GHz
- Contact Termination
- Solder
- Insertion Loss
- 0.1dB
- Mating Cycles
- 500
- Center Contact Plating
- Gold
- Number Of Ports
- 1
- Connector Style
- MCX
- JESD-609 Kodu
- e4
- Connector Type
- Plug, Male Pin
- Montaj
- Cable, Free Hanging
- Depth
- 5mm
- Includes

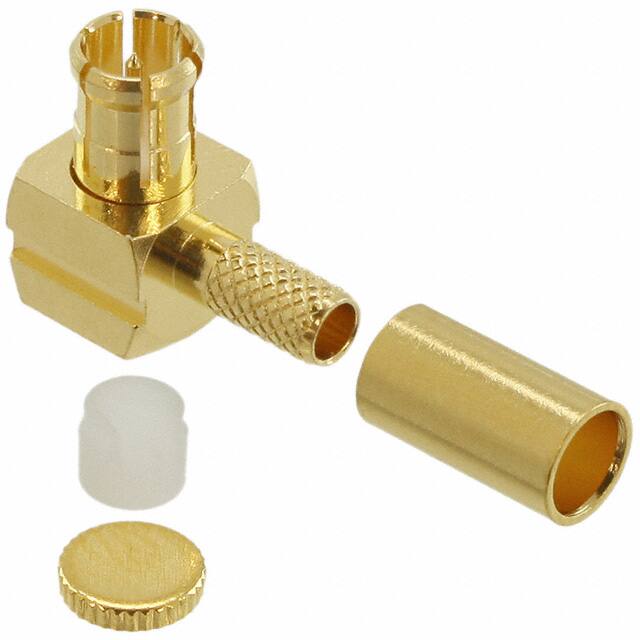

- 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Gasket
- Shield Termination
- Crimp
- Parça Durumu
- Active
- Weight
- 900.012311mg
- Fabrika Tedarik Süresi
- 10 Weeks
- Empedans
- 75Ohm
- Çalışma Sıcaklığı
- -65°C~165°C
- Orientation
- Right Angle
- Iec Conformance
- NO
- Body Material
- Beryllium Copper
- Nominal Gerilim
- 500V
- Uzunluk
- 8.6mm
- Mil Conformance
- NO
- Vswr
- 1.5
- Dielectric Material
- Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
- Filter Feature
- NO
- Din Conformance
- NO
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Insulation Materials
- Polytetrafluoroethylene
- Montaj Tipi
- Free Hanging (In-Line), Right Angle
- Ambalaj
- Bulk
- Center Contact Material
- Brass
- Option
- GENERAL PURPOSE
- Yayın Yılı
- 2001
- RoHS Durumu
- RoHS Compliant
- Radyasyon Dayanımı
- No
- Fastening Type
- Snap-On
