Adet bazlı fiyat
- 1+ adet$9.99
- 10+ adet$9.42
- 100+ adet$8.89
- 500+ adet$8.39
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Body Finish
- White Bronze
- Filter Feature
- NO
- Center Contact Plating
- Gold
- Weight
- 34.660014g
- Frekans
- 11GHz
- Fabrika Tedarik Süresi
- 9 Weeks
- Çalışma Sıcaklığı
- -65°C~165°C
- Mil Conformance
- YES
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Housing Color
- Silver
- Nominal Gerilim
- 1500V
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Montaj
- Cable, Free Hanging
- Diameter Inside
- 2.24 mm
- Contact Materials
- Bronze, Copper
- Kurşunsuz
- Lead Free
- Mating Cycles
- 500
- Contact Termination
- Solder
- Montaj Tipi
- Free Hanging (In-Line)
- Iec Conformance
- NO
- Yayın Yılı
- 2001
- Body Material
- Brass
- Radyasyon Dayanımı
- No
- Empedans
- 50Ohm
- Center Contact Material
- Phosphor Bronze
- Fastening Type
- Threaded
- Vswr
- 1.3
- Includes

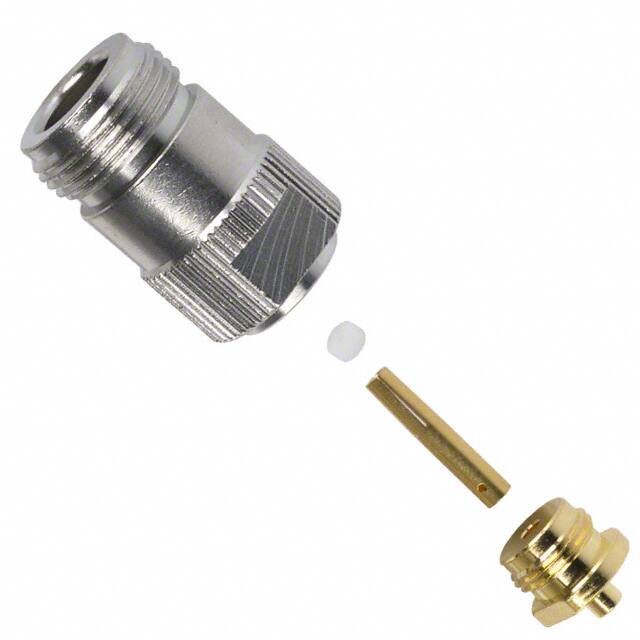

- 4 pcs - 1 Connector, 1 Contact, 1 Insulator, 1 Nut
- Body Plating
- Bronze
- Connector Type
- Jack, Female Socket
- Option
- GENERAL PURPOSE
- Din Conformance
- NO
- Number Of Ports
- 1
- Insertion Loss
- 0.15dB
- Insulation Resistance
- 5GOhm
- Uzunluk
- 26.7mm
- Parça Durumu
- Active
- Insulation Materials
- Polytetrafluoroethylene
- Ambalaj
- Bulk
- Cable Group
- RG-405 (.085, .086 Semi Rigid)
