Adet bazlı fiyat
- 1+ adet$14.96
- 10+ adet$14.11
- 100+ adet$13.31
- 500+ adet$12.56
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Din Conformance
- NO
- Connector Type
- Plug, Male Pin
- Option
- GENERAL PURPOSE
- Body Plating
- Bronze
- Includes

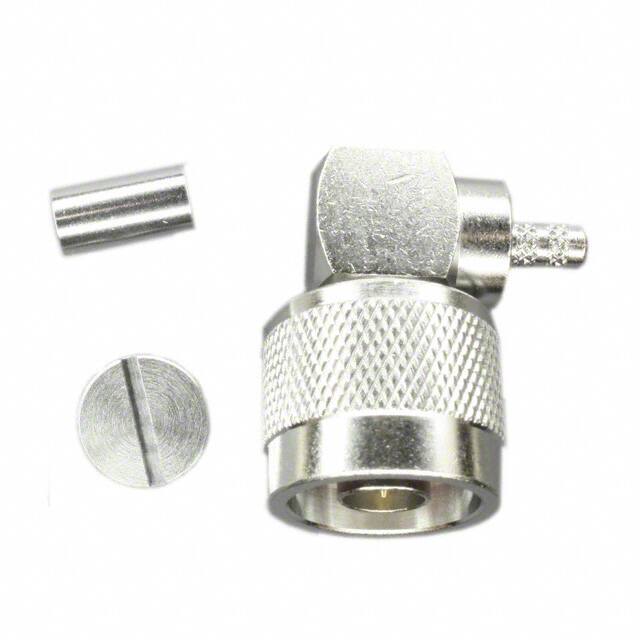

- 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
- Vswr
- 1.3
- Reach Svhc
- Unknown
- Additional Feature
- APPLICABLE CABLE: RG 58/U; RG 58C/U
- Contact Plating
- Nickel, Gold
- Uzunluk
- 25.3746mm
- Insulation Resistance
- 5GOhm
- Shield Termination
- Crimp
- Insertion Loss
- 0.15dB
- Number Of Ports
- 1
- JESD-609 Kodu
- e4
- Cable Group
- RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
- Ambalaj
- Bulk
- Insulation Materials
- Teflon
- Parça Durumu
- Active
- RoHS Durumu
- RoHS Compliant
- Orientation
- Right Angle
- Connector Style
- N Type
- Mil Conformance
- NO
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Çalışma Sıcaklığı
- -65°C~165°C
- Frequencymax
- 11GHz
- Frekans
- 11Hz
- Fabrika Tedarik Süresi
- 8 Weeks
- Center Contact Plating
- Gold
- Weight
- 47.999995g
- Filter Feature
- NO
- Body Finish
- White Bronze
- Kurşunsuz
- Lead Free
- Diameter Inside
- 3.1 mm
- Montaj
- Cable, Free Hanging
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Nominal Gerilim
- 1500V
- Housing Color
- Silver
- Body Material
- Brass
- Yayın Yılı
- 2001
