172171

Teknik Özellikler

Mating Cycles

500

Montaj Tipi

Free Hanging (In-Line)

Iec Conformance

NO

Contact Termination

Solder

Yayın Yılı

2001

Body Material

Brass

Radyasyon Dayanımı

No

Empedans

50Ohm

Fastening Type

Threaded

Body Finish

White Bronze

Filter Feature

NO

Kılıf / Paket

316

Frekans

11GHz

Fabrika Tedarik Süresi

9 Weeks

Weight

32.740014g

Center Contact Plating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

YES

Çalışma Sıcaklığı

-65°C~165°C

Housing Color

Silver

Montaj

Cable, Free Hanging

Nominal Gerilim

1500V

Dielectric Material

Polytetrafluoroethylene (PTFE)

Kurşunsuz

Lead Free

Parça Durumu

Active

Insulation Materials

Polytetrafluoroethylene

Ambalaj

Bulk

Cable Group

RG-179, 188, 316 Double Braid, M17/152-RD316

JESD-609 Kodu

e4

Orientation

Straight

RoHS Durumu

RoHS Compliant

Connector Style

N Type

Vswr

1.3

Includes

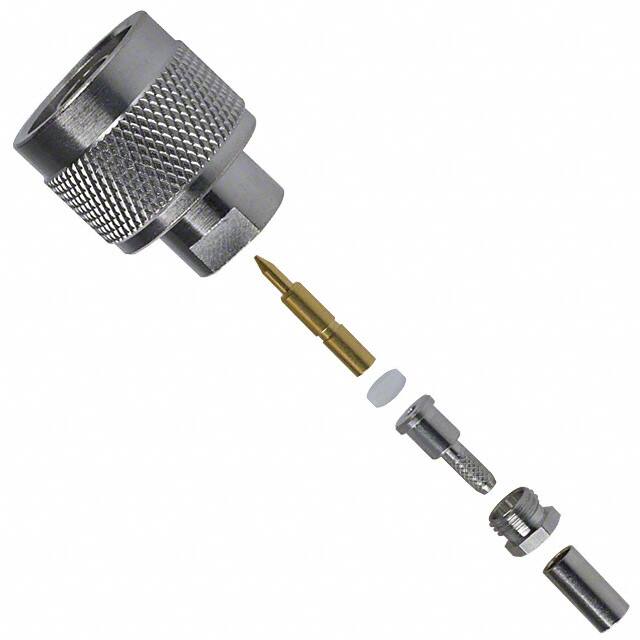

6 pcs - 1 Connector, 1 Barrel, 1 Contact, 1 Ferrule, 1 Hex Nut, 1 Insulator

Connector Type

Plug, Male Pin

Option

GENERAL PURPOSE

Body Plating

Bronze

Din Conformance

NO

Shield Termination

Crimp

Insertion Loss

0.15dB
