Adet bazlı fiyat
- 1+ adet$36.05
- 10+ adet$34.01
- 100+ adet$32.08
- 500+ adet$30.27
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Empedans
- 50Ohm
- Radyasyon Dayanımı
- No
- Fastening Type
- Threaded
- Center Contact Material
- Beryllium Copper; Brass
- Montaj Tipi
- Panel Mount
- Contact Termination
- Crimp or Solder
- Mating Cycles
- 500
- Terminal
- Crimp
- Body Material
- Brass
- Yayın Yılı
- 2010
- Montaj
- Bulkhead, Front Side Nut, Panel
- Nominal Gerilim
- 1500V
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Housing Color
- Silver
- Maks. Çalışma Sıcaklığı
- 165°C
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Contact Materials
- Brass, Copper
- Kılıf / Paket
- 316
- Body Finish
- White Bronze
- Min. Çalışma Sıcaklığı
- -65°C
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Çalışma Sıcaklığı
- -65°C~165°C
- Frequencymax
- 2.5GHz
- Frekans
- 2.5GHz
- Fabrika Tedarik Süresi
- 9 Weeks
- Center Contact Plating
- Gold
- Orientation
- Straight
- RoHS Durumu
- RoHS Compliant
- Mounting Feature
- Bulkhead - Front Side Nut
- Connector Style
- N Type
- Ratings
- Dust Tight, IP68, Waterproof
- Parça Durumu
- Active
- Cable Group
- RG-179, 188, 316 Double Braid, M17/152-RD316
- Ambalaj
- Bulk
- Insertion Loss
- 0.15dB
- Shield Termination
- Crimp
- Number Of Ports
- 1

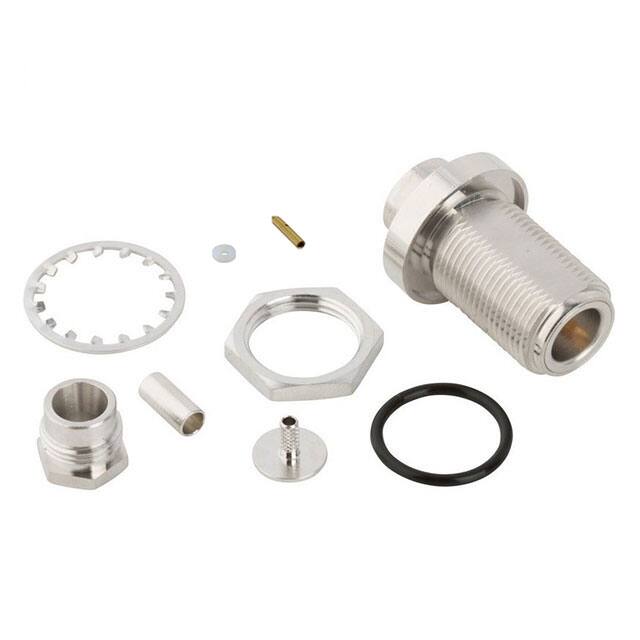

- Includes
- 9 pcs - 1 Connector, 1 Clamp, 1 Contact, 1 Ferrule, 1 Gasket, 1 Insulator, 1 Lockwasher, 1 Nut, 1 Rear Body
- Contact Plating
- Gold
- Connector Type
- Jack, Female Socket
