172149

Teknik Özellikler

Empedans

50Ohm

Fastening Type

Threaded

Center Contact Material

Phosphor Bronze

Iec Conformance

NO

Montaj Tipi

Panel Mount

Contact Termination

Crimp

Mating Cycles

500

Body Material

Brass

Yayın Yılı

2004

Montaj

Bulkhead, Front Side Nut, Panel

Dielectric Material

Polytetrafluoroethylene (PTFE)

Nominal Gerilim

1500V

Housing Color

Silver

Ingress Protection

Weatherproof

Kurşunsuz

Lead Free

Contact Materials

Bronze, Copper

Filter Feature

NO

Body Finish

White Bronze

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-65°C~165°C

Frekans

11GHz

Fabrika Tedarik Süresi

9 Weeks

Center Contact Plating

Gold

Weight

38.899997g

RoHS Durumu

RoHS Compliant

Orientation

Straight

Mounting Feature

Bulkhead - Front Side Nut

Connector Style

N Type

Insulation Materials

Polytetrafluoroethylene

Parça Durumu

Active

JESD-609 Kodu

e4

Cable Group

RG-8X, Belden 9258, LMR-240

Ambalaj

Bulk

Insulation Resistance

5GOhm

Insertion Loss

0.15dB

Number Of Ports

1

Uzunluk

36mm

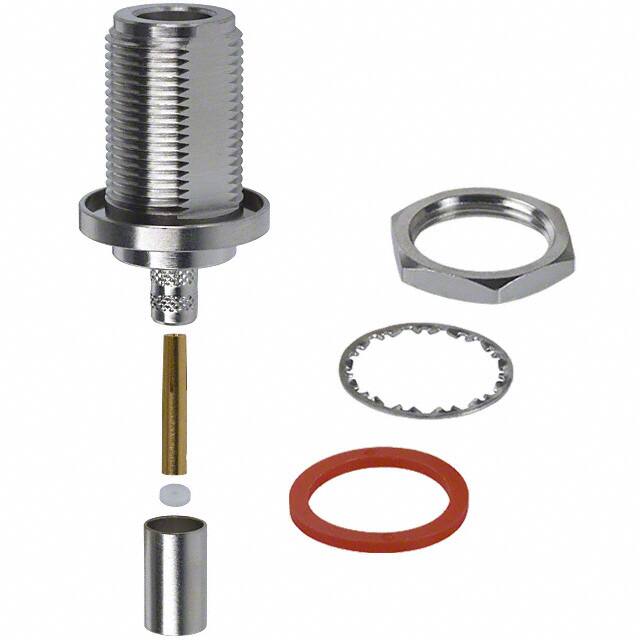

Includes

6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut

Vswr

1.3
