Adet bazlı fiyat
- 1+ adet$14.93
- 10+ adet$14.09
- 100+ adet$13.29
- 500+ adet$12.54
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Connector Style
- N Type
- Mounting Feature
- Bulkhead - Front Side Nut
- Orientation
- Straight
- RoHS Durumu
- RoHS Compliant
- Insulation Materials
- Polytetrafluoroethylene
- Parça Durumu
- Active
- Cable Group
- RG-405 (.085, .086 Semi Rigid)
- Ambalaj
- Bulk
- Insulation Resistance
- 5GOhm
- Number Of Ports
- 1
- Insertion Loss
- 0.15dB
- Shield Termination
- Solder
- Uzunluk
- 26.7mm
- Includes

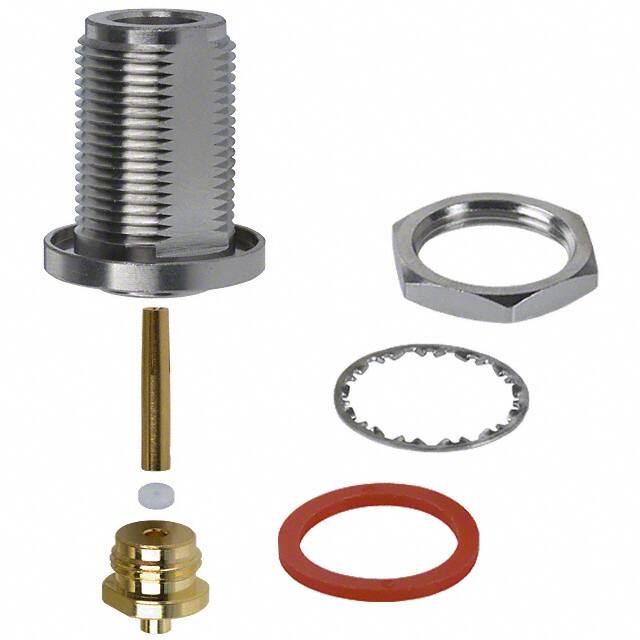

- 7 pcs - 1 Connector, 1 Contact, 1 Gasket, 1 Insulator, 1 Lockwasher, 2 Nuts
- Contact Plating
- Gold
- Body Plating
- Bronze
- Connector Type
- Jack, Female Socket
- Empedans
- 50Ohm
- Fastening Type
- Threaded
- Center Contact Material
- Phosphor Bronze
- Contact Termination
- Solder
- Montaj Tipi
- Panel Mount
- Terminal
- Solder
- Mating Cycles
- 500
- Body Material
- Brass
- Yayın Yılı
- 2001
- Nominal Gerilim
- 1500V
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Montaj
- Bulkhead, Front Side Nut, Panel
- Maks. Çalışma Sıcaklığı
- 165°C
- Housing Color
- Silver
- Kurşunsuz
- Lead Free
- Ingress Protection
- Weatherproof
- Diameter Inside
- 12.5 mm
- Contact Materials
- Bronze
- Min. Çalışma Sıcaklığı
- -65°C
- Body Finish
- White Bronze
- Çalışma Sıcaklığı
- -65°C~165°C
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Weight
- 36.859993g
