Adet bazlı fiyat
- 1+ adet$9.30
- 10+ adet$8.77
- 100+ adet$8.27
- 500+ adet$7.81
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Ambalaj
- Bulk

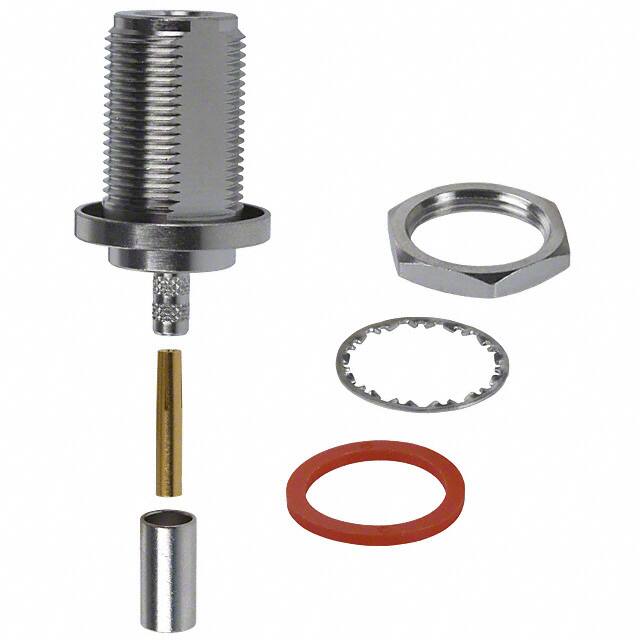

- Includes
- 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
- Mating Cycles
- 500
- Frequencymax
- 11GHz
- Min. Çalışma Sıcaklığı
- -65°C
- Body Finish
- White Bronze
- Number Of Ports
- 1
- Yayın Yılı
- 2001
- Shield Termination
- Crimp
- Terminal
- Crimp
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 8 Weeks
- Empedans
- 50Ohm
- Body Material
- Brass
- Body Plating
- Bronze
- Çalışma Sıcaklığı
- -65°C~165°C
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Connector Style
- N Type
- Fastening Type
- Threaded
- Ingress Protection
- Weatherproof
- Weight
- 38.65999g
- Diameter Inside
- 3.1 mm
- Orientation
- Straight
- Contact Termination
- Crimp
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Insertion Loss
- 0.15dB
- Center Contact Material
- Phosphor Bronze
- Cable Group
- RG-55, 142, 223, 400
- Housing Color
- Silver
- Uzunluk
- 36mm
- Maks. Çalışma Sıcaklığı
- 165°C
- Contact Materials
- Bronze, Copper
- Center Contact Plating
- Gold
- Montaj
- Bulkhead, Front Side Nut, Panel
- Frekans
- 11GHz
- RoHS Durumu
- RoHS Compliant
- Insulation Resistance
- 5GOhm
- Mounting Feature
- Bulkhead - Front Side Nut
- Connector Type
- Jack, Female Socket
- Insulation Materials
- Polytetrafluoroethylene
