Teknik Özellikler
- Connector Type
- Jack, Male Pin
- Mounting Feature
- Bulkhead - Front Side Nut
- Kurşunsuz
- Lead Free
- Nominal Gerilim
- 1500V
- Montaj Tipi
- Panel Mount
- Insulation Materials
- TEFLON
- Contact Style
- COAX
- Total Number Of Contacts
- 1
- Frekans
- 11GHz
- Montaj
- Bulkhead, Front Side Nut, Panel
- RoHS Durumu
- RoHS Compliant
- Cable Group
- RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
- Center Contact Material
- Phosphor Bronze
- Contact Materials
- Bronze, Copper
- Center Contact Plating
- Gold
- Housing Color
- Silver
- Reliability
- COMMERCIAL
- Body Depth
- 0.867 inch
- Kılıf / Paket
- 100
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Contact Termination
- Crimp
- Insertion Loss
- 0.15dB
- Weight
- 37.220004g
- Ingress Protection
- Weatherproof
- Çalışma Sıcaklığı
- -65°C~165°C
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Connector Style
- RP-N Type
- Fastening Type
- Threaded
- Body Plating
- Bronze
- Insulator Color
- NATURAL
- Orientation
- Straight
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 8 Weeks
- Yayın Yılı
- 2005
- Body Material
- Brass
- Empedans
- 50Ohm
- Radyasyon Dayanımı
- No
- ECCN Kodu
- EAR99
- Includes

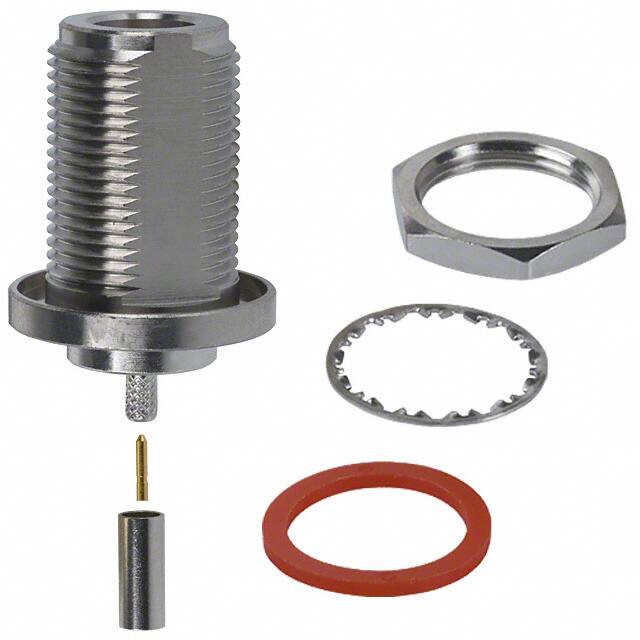

- 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
- Mating Cycles
- 500
