Adet bazlı fiyat
- 1+ adet$7.88
- 10+ adet$7.43
- 100+ adet$7.01
- 500+ adet$6.62
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Nominal Gerilim
- 375V
- ECCN Kodu
- EAR99
- Cable Group
- RG-178, 178A, 178B, 196, 196A, M17/93-RG178
- Number Of Ports
- 1
- Shield Termination
- Crimp
- Uzunluk
- 19.8mm
- Mounting Feature
- Bulkhead - Front Side Nut
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 10 Weeks
- Orientation
- Straight
- Weight
- 5.280014g
- Total Number Of Contacts
- 1
- Ambalaj
- Bulk
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Fastening Type
- Threaded
- Contact Termination
- Solder
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Yayın Yılı
- 2005
- Montaj Tipi
- Panel Mount
- Radyasyon Dayanımı
- No
- RoHS Durumu
- RoHS Compliant
- Center Contact Plating
- Gold
- Reliability
- COMMERCIAL
- Frekans
- 12.4GHz
- Contact Style
- COAX
- Depth
- 11mm
- Mating Cycles
- 500
- Empedans
- 50Ohm
- Connector Type
- Jack, Male Pin
- Kılıf / Paket
- SMA
- Body Material
- Brass
- Vswr
- 1.3
- Çalışma Sıcaklığı
- -65°C~165°C
- Montaj
- Bulkhead, Front Side Nut, Panel
- Connector Style
- RP-SMA
- Insulator Color
- NATURAL
- Includes

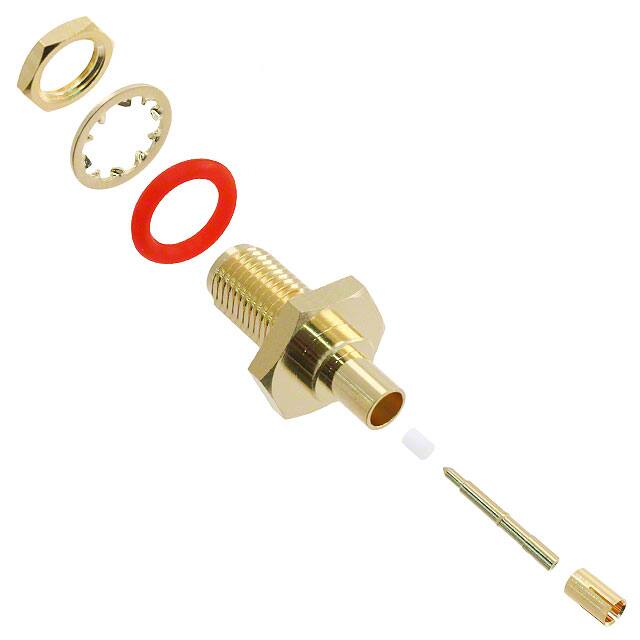

- 8 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Insulator, 1 Lockwasher, 1 Nut, 1 Sleeve
- Insulation Materials
- Polytetrafluoroethylene
