Adet bazlı fiyat
- 1+ adet$6.90
- 10+ adet$6.51
- 100+ adet$6.14
- 500+ adet$5.79
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Yayın Yılı
- 2001
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Contact Termination
- Solder
- Fastening Type
- Threaded
- Total Number Of Contacts
- 1
- Ambalaj
- Bulk
- Weight
- 4.828009g
- Center Contact Material
- Beryllium Copper
- Body Depth
- 0.449 inch
- Orientation
- Straight
- Fabrika Tedarik Süresi
- 9 Weeks
- Parça Durumu
- Active
- Shield Termination
- Crimp
- Number Of Ports
- 1
- Mounting Feature
- Bulkhead - Front Side Nut
- ECCN Kodu
- EAR99
- Cable Group
- RG-178, 178A, 178B, 196, 196A, M17/93-RG178
- Nominal Gerilim
- 375V
- Insulation Materials
- TEFLON

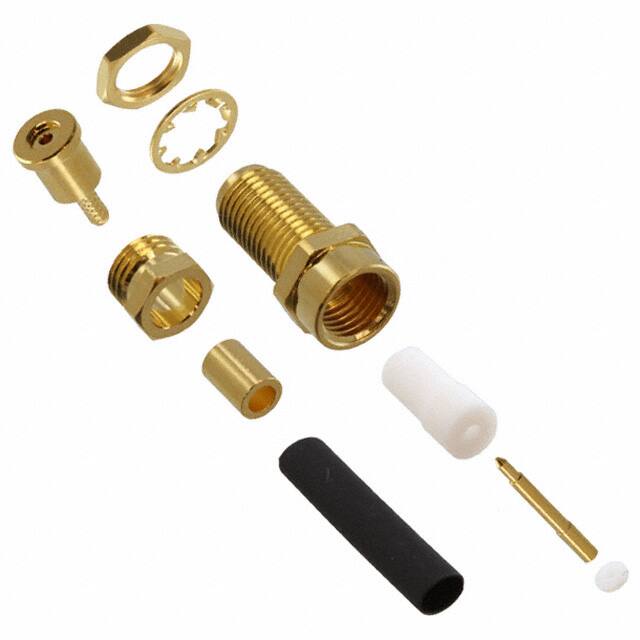

- Includes
- 10 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 2 Insulators, 1 Lockwasher, 2 Nuts, 1 Rear Body
- Insulator Color
- NATURAL
- Connector Style
- RP-SMA
- Çalışma Sıcaklığı
- -65°C~165°C
- Montaj
- Bulkhead, Front Side Nut, Panel
- Body Material
- Brass
- Kılıf / Paket
- SMA
- Empedans
- 50Ohm
- Connector Type
- Jack, Male Pin
- Contact Materials
- Copper
- Contact Style
- COAX
- Mating Cycles
- 500
- Ingress Protection
- Weatherproof
- Frekans
- 18GHz
- Reliability
- COMMERCIAL
- Radyasyon Dayanımı
- No
- Frequencymax
- 12.4GHz
- RoHS Durumu
- RoHS Compliant
- Center Contact Plating
- Gold
- Montaj Tipi
- Panel Mount
