Adet bazlı fiyat
- 1+ adet$19.70
- 10+ adet$18.58
- 100+ adet$17.53
- 500+ adet$16.54
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Shield Termination
- Crimp
- Center Contact Plating
- Gold
- Housing Color
- Silver
- Contact Plating
- Gold
- Ambalaj
- Bulk
- Contact Termination
- Solder
- Min. Çalışma Sıcaklığı
- -65°C
- Number Of Ports
- 1
- Kılıf / Paket
- 316
- Fastening Type
- Threaded
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Center Contact Material
- Phosphor Bronze
- Body Finish
- Nickel
- Montaj Tipi
- Panel Mount
- Body Material
- Brass
- Montaj
- Bulkhead, Front, Panel, Rear Side Nut
- Frequencymax
- 11GHz
- Terminal
- Solder
- Connector Type
- Jack, Female Socket
- Mating Cycles
- 500
- Empedans
- 50Ohm
- Fabrika Tedarik Süresi
- 9 Weeks
- Yayın Yılı
- 2005
- Orientation
- Straight
- Mounting Feature
- Bulkhead - Rear Side Nut
- Parça Durumu
- Active
- Frekans
- 11GHz
- Insertion Loss
- 0.18dB

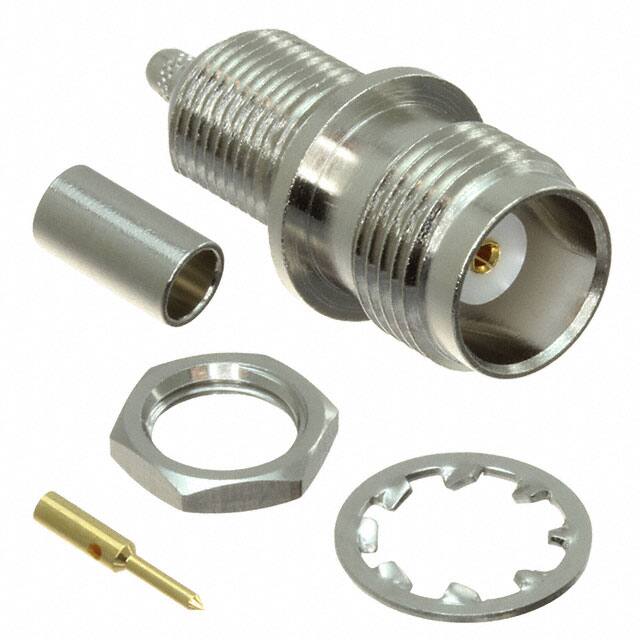

- Includes
- 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
- Cable Group
- RG-179, 188, 316 Double Braid, M17/152-RD316
- RoHS Durumu
- RoHS Compliant
- Nominal Gerilim
- 500V
- Contact Materials
- Bronze
- Body Plating
- Nickel
- Connector Style
- TNC
- Maks. Çalışma Sıcaklığı
- 165°C
