Adet bazlı fiyat
- 1+ adet$7.68
- 10+ adet$7.24
- 100+ adet$6.83
- 500+ adet$6.45
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Maks. Çalışma Sıcaklığı
- 165°C
- Connector Style
- TNC
- Nominal Gerilim
- 500V
- RoHS Durumu
- RoHS Compliant
- Cable Group
- RG-8X, Belden 9258, LMR-240
- Body Plating
- Nickel
- Contact Materials
- Bronze
- Parça Durumu
- Active
- Uzunluk
- 30.3mm
- Insulation Materials
- Polytetrafluoroethylene

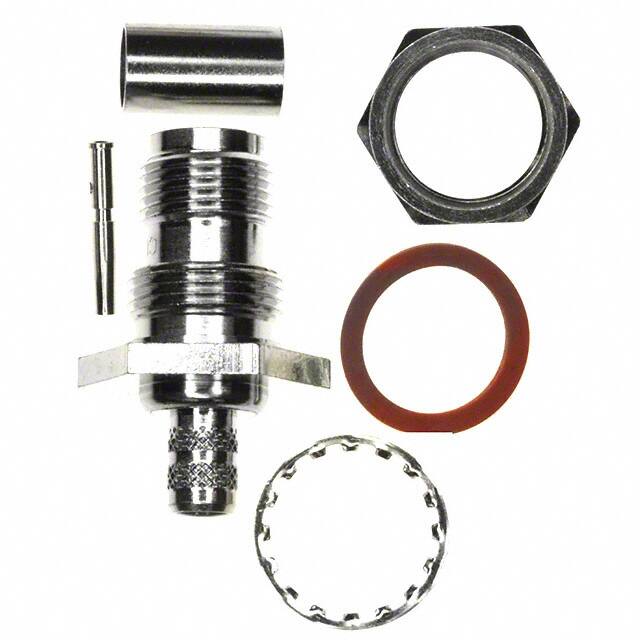

- Includes
- 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
- Insertion Loss
- 0.18dB
- Frekans
- 11GHz
- Mating Cycles
- 500
- Orientation
- Straight
- Mounting Feature
- Bulkhead - Front Side Nut
- Fabrika Tedarik Süresi
- 8 Weeks
- Yayın Yılı
- 2001
- Empedans
- 50Ohm
- Frequencymax
- 11GHz
- Montaj
- Bulkhead, Front Side Nut, Panel
- Connector Type
- Jack, Female Socket
- Terminal
- Crimp
- Radyasyon Dayanımı
- No
- Center Contact Material
- Phosphor Bronze
- Body Material
- Brass
- Montaj Tipi
- Panel Mount
- Body Finish
- Nickel
- Number Of Ports
- 1
- Min. Çalışma Sıcaklığı
- -65°C
- Contact Termination
- Solder
- Ambalaj
- Bulk
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Fastening Type
- Threaded
- Contact Plating
- Gold
- Housing Color
- Silver
- Shield Termination
- Crimp
- Polarity
- Standard
- Center Contact Plating
- Gold
