Adet bazlı fiyat
- 1+ adet$4.93
- 10+ adet$4.65
- 100+ adet$4.39
- 500+ adet$4.14
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Reach Svhc
- Unknown
- Housing Color
- Silver
- Mating Cycles
- 500
- Yayın Yılı
- 2001
- Number Of Ports
- 1
- Body Finish
- Nickel
- Fastening Type
- Threaded
- Montaj Tipi
- Panel Mount
- Nominal Gerilim
- 500V
- Mounting Feature
- Bulkhead - Front Side Nut
- Parça Durumu
- Active
- Ambalaj
- Bulk
- Dielectric Material
- Polyoxymethylene (POM) Acetal
- Insertion Loss
- 0.18dB
- Frekans
- 11GHz
- Contact Plating
- Gold
- Weight
- 17.999991g
- Center Contact Plating
- Gold
- Connector Style
- TNC
- Uzunluk
- 28.8mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Terminal
- Crimp
- Kılıf / Paket
- 316
- Contact Termination
- Crimp
- Min. Çalışma Sıcaklığı
- -40°C
- Body Material
- Brass
- Frequencymax
- 11GHz
- Connector Type
- Jack, Female Socket
- Empedans
- 50Ohm
- Kurşunsuz
- Lead Free
- Includes

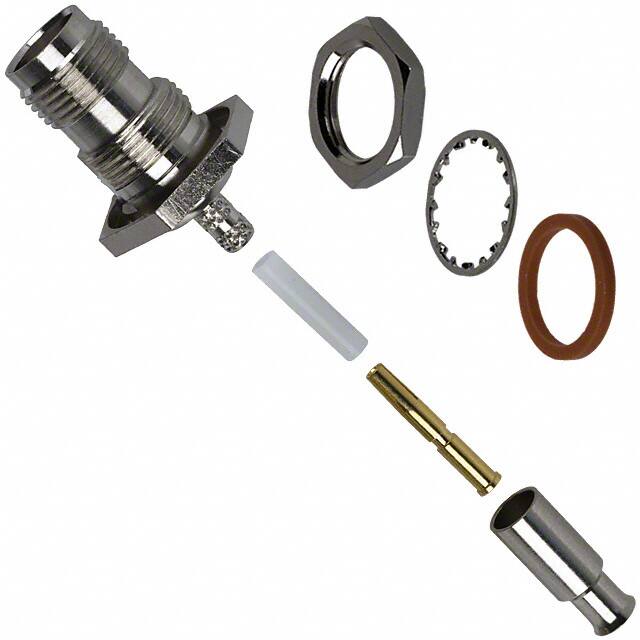

- 7 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut, 1 Sleeve
- RoHS Durumu
- RoHS Compliant
- Montaj
- Bulkhead, Front Side Nut, Panel
- Fabrika Tedarik Süresi
- 8 Weeks
- Body Plating
- Nickel
- Depth
- 17.5mm
- Shield Termination
- Crimp
- Center Contact Material
- Phosphor Bronze
- Contact Materials
- Bronze
- Orientation
- Straight
