Adet bazlı fiyat
- 1+ adet$5.51
- 10+ adet$5.19
- 100+ adet$4.90
- 500+ adet$4.62
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Nominal Gerilim
- 500V
- Contact Materials
- Bronze

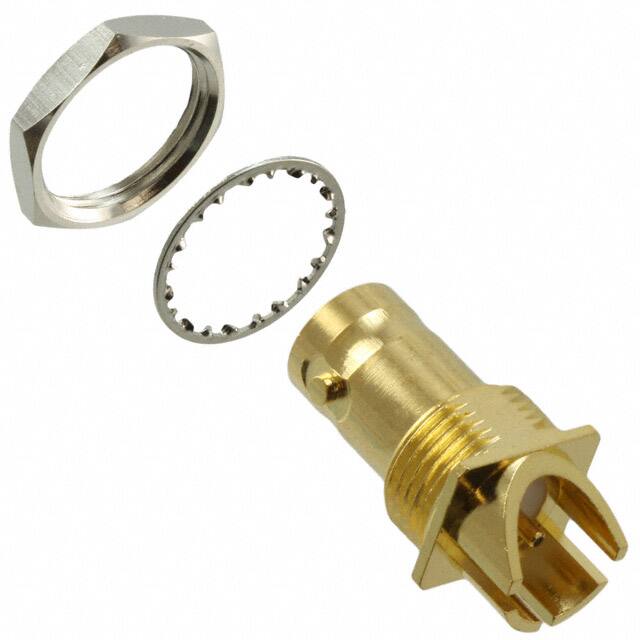

- Includes
- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Reach Svhc
- Unknown
- Çalışma Sıcaklığı
- -65°C~165°C
- Number Of Ports
- 1
- Insulation Materials
- Polytetrafluoroethylene
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Contact Termination
- Solder
- Mating Cycles
- 500
- Weight
- 8.479994g
- Frekans
- 4GHz
- Parça Durumu
- Active
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Radyasyon Dayanımı
- No
- Uzunluk
- 25.55mm
- Fabrika Tedarik Süresi
- 11 Weeks
- Empedans
- 75Ohm
- Fastening Type
- Bayonet Lock
- Orientation
- Straight
- Mounting Feature
- Bulkhead - Front Side Nut
- Connector Style
- BNC
- Body Material
- Brass
- Insertion Loss
- 0.2dB
- Yayın Yılı
- 2000
- Montaj
- Bulkhead, Edge, Panel, Surface Mount
- Center Contact Material
- Phosphor Bronze
- RoHS Durumu
- RoHS Compliant
- ECCN Kodu
- EAR99
- Connector Type
- Jack, Female Socket
- Montaj Tipi
- Board Edge, End Launch; Panel Mount
- Ambalaj
- Bulk
- Center Contact Plating
- Gold
