Adet bazlı fiyat
- 1+ adet$8.57
- 10+ adet$8.08
- 100+ adet$7.63
- 500+ adet$7.19
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Fastening Type
- Bayonet Lock
- Contact Plating
- Gold
- Maks. Çalışma Sıcaklığı
- 165°C
- Fabrika Tedarik Süresi
- 9 Weeks
- Connector Style
- BNC
- Includes

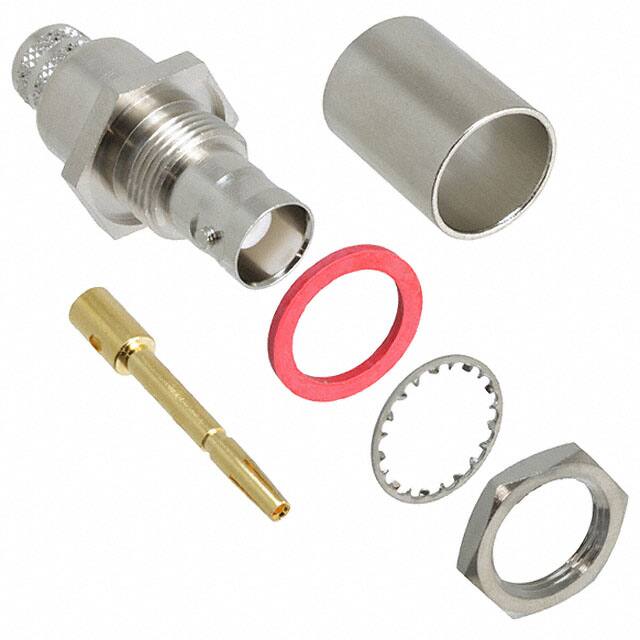

- 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
- Body Material
- Brass
- Nominal Gerilim
- 500V
- Center Contact Material
- Phosphor Bronze
- Body Plating
- Nickel
- Mating Cycles
- 500
- Body Finish
- Nickel
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Min. Çalışma Sıcaklığı
- -65°C
- Shield Termination
- Crimp
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Uzunluk
- 37.5mm
- Terminal
- Crimp
- Empedans
- 50Ohm
- Contact Materials
- Bronze
- Contact Termination
- Crimp
- Number Of Ports
- 1
- Yayın Yılı
- 2001
- Frekans
- 4GHz
- Orientation
- Straight
- Center Contact Plating
- Gold
- Frequencymax
- 4GHz
- Housing Color
- Silver
- Montaj
- Bulkhead, Front Side Nut, Panel
- Insertion Loss
- 0.2dB
- Depth
- 17.5mm
- Cable Group
- Belden 8214, 9913, 9914, LMR-400
- Radyasyon Dayanımı
- No
- Parça Durumu
- Active
- Mounting Feature
- Bulkhead - Front Side Nut
- RoHS Durumu
- RoHS Compliant
- Montaj Tipi
- Panel Mount
- Ambalaj
- Bulk
- Connector Type
- Jack, Female Socket
- Insulation Materials
- Polytetrafluoroethylene
