Adet bazlı fiyat
- 1+ adet$5.98
- 10+ adet$5.64
- 100+ adet$5.32
- 500+ adet$5.02
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Fastening Type
- Bayonet Lock
- Kurşunsuz
- Lead Free
- Contact Plating
- Gold
- Connector Style
- BNC
- Weight
- 15.419986g
- Fabrika Tedarik Süresi
- 9 Weeks
- Maks. Çalışma Sıcaklığı
- 165°C
- Nominal Gerilim
- 500V
- Includes

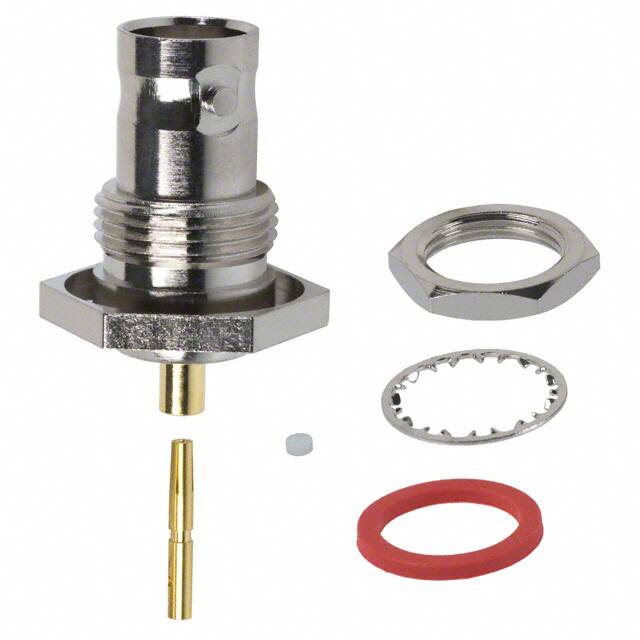

- 6 pcs - 1 Connector, 1 Contact, 1 Gasket, 1 Insulator, 1 Lockwasher, 1 Nut
- Body Material
- Brass
- Center Contact Material
- Phosphor Bronze
- Body Plating
- Nickel
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Mating Cycles
- 500
- Body Finish
- Nickel
- Uzunluk
- 26.9mm
- Terminal
- Solder
- Shield Termination
- Solder
- Min. Çalışma Sıcaklığı
- -65°C
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Empedans
- 50Ohm
- Contact Termination
- Solder
- Contact Materials
- Bronze
- Gender
- Male
- Frequencymax
- 4GHz
- Number Of Ports
- 1
- Frekans
- 4GHz
- Yayın Yılı
- 2001
- Orientation
- Straight
- Center Contact Plating
- Gold
- Housing Color
- Silver
- Cable Group
- RG-405 (.085, .086 Semi Rigid)
- Montaj
- Bulkhead, Front Side Nut, Panel
- Insertion Loss
- 0.2dB
- Depth
- 17.5mm
- Radyasyon Dayanımı
- No
- Parça Durumu
- Active
- Mounting Feature
- Bulkhead - Front Side Nut
- Montaj Tipi
- Panel Mount
- RoHS Durumu
- RoHS Compliant
