Adet bazlı fiyat
- 1+ adet$2.44
- 10+ adet$2.30
- 100+ adet$2.17
- 500+ adet$2.05
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Yayın Yılı
- 2001
- Frekans
- 4GHz
- Number Of Ports
- 1
- Center Contact Plating
- Gold
- Orientation
- Straight
- Reach Svhc
- Unknown
- Housing Color
- Silver
- Mil Conformance
- NO
- Montaj
- Bulkhead, Front, Panel, Rear Side Nut
- Insertion Loss
- 0.2dB
- JESD-609 Kodu
- e4
- Radyasyon Dayanımı
- No
- Parça Durumu
- Active
- Option
- GENERAL PURPOSE
- Mounting Feature
- Bulkhead - Rear Side Nut
- Din Conformance
- NO
- Montaj Tipi
- Panel Mount
- RoHS Durumu
- RoHS Compliant
- Ambalaj
- Bulk
- Filter Feature
- NO
- Iec Conformance
- NO
- Insulation Materials
- POLYTETRAFLUORO ETHYLENE
- Özellikler
- Extended Insulation
- Connector Type
- Jack, Female Socket
- Fastening Type
- Bayonet Lock
- Maks. Çalışma Sıcaklığı
- 165°C
- Fabrika Tedarik Süresi
- 8 Weeks
- Weight
- 5.219998g
- Connector Style
- BNC
- Nominal Gerilim
- 500V
- Includes

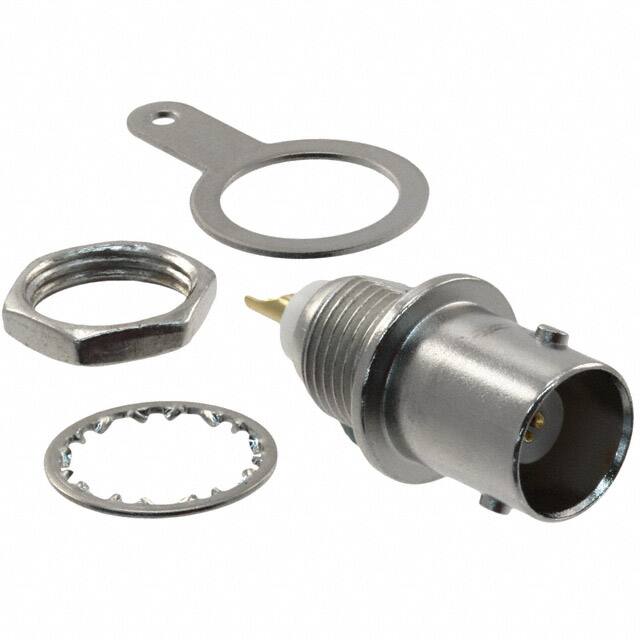

- 4 pcs - 1 Connector, 1 Lockwasher, 1 Nut, 1 Solder Tag
- Body Material
- Zinc Die Cast
- Center Contact Material
- Beryllium Copper
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Mating Cycles
- 500
- Body Finish
- Nickel
- Terminal
- Solder
- Min. Çalışma Sıcaklığı
- -65°C
- Shield Termination
- Solder Tag
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
