Adet bazlı fiyat
- 1+ adet$7.32
- 10+ adet$6.91
- 100+ adet$6.52
- 500+ adet$6.15
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Fastening Type
- Bayonet Lock
- Ambalaj
- Bulk
- Nominal Gerilim
- 500V
- Center Contact Plating
- Gold
- Contact Termination
- Crimp
- ECCN Kodu
- EAR99
- Number Of Ports
- 1
- Montaj Tipi
- Panel Mount
- Center Contact Material
- Phosphor Bronze
- Body Finish
- Nickel
- Fabrika Tedarik Süresi
- 9 Weeks
- Çalışma Sıcaklığı
- -65°C~165°C
- Housing Color
- Silver
- Reliability
- COMMERCIAL
- Body Depth
- 0.709 inch
- Mating Cycles
- 500
- Empedans
- 50Ohm
- Body Material
- Brass
- Insertion Loss
- 0.2dB
- Contact Style
- COAX
- Kılıf / Paket
- 316
- RoHS Durumu
- RoHS Compliant
- Total Number Of Contacts
- 1
- Yayın Yılı
- 2011
- Weight
- 16.499989g
- Montaj
- Bulkhead, Front Side Nut, Panel
- Connector Type
- Jack, Male Pin
- Connector Style
- RP-BNC
- Cable Group
- RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
- Frekans
- 4GHz
- Parça Durumu
- Active
- Orientation
- Straight

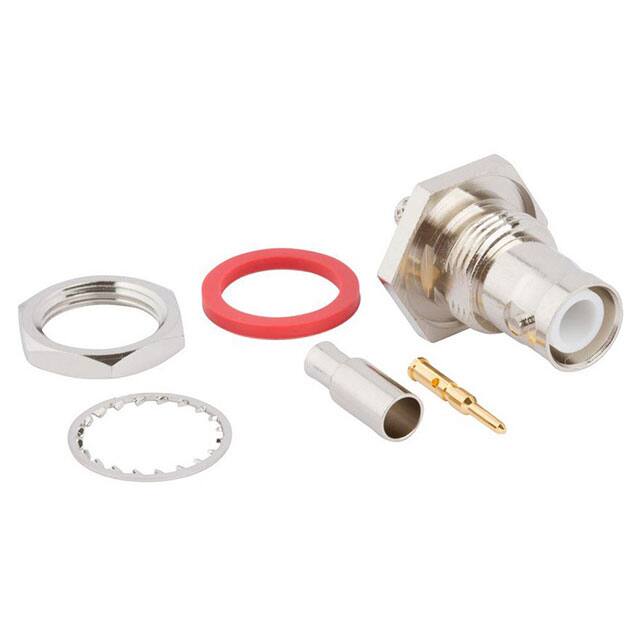

- Includes
- 7 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut, 1 Sleeve
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Reach Svhc
- Unknown
- Insulator Color
- NATURAL
- Radyasyon Dayanımı
- No
- Mounting Feature
- Bulkhead - Front Side Nut
