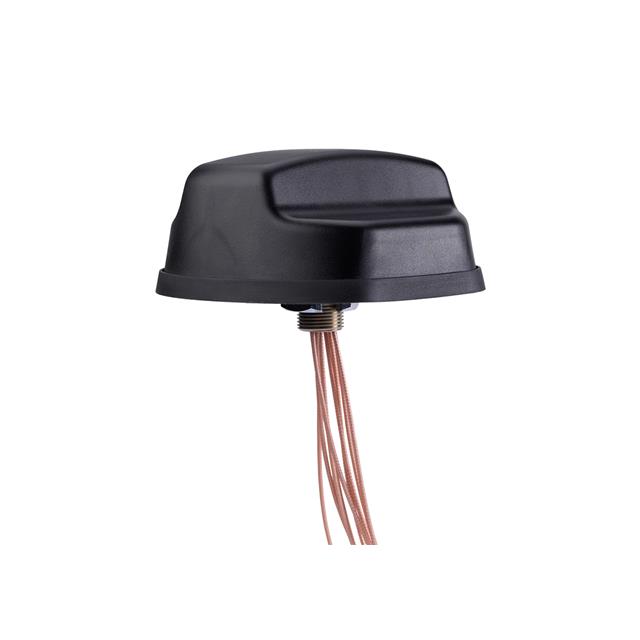

GL4X4-SF-PLK

Teknik Özellikler

Rf Familystandard

Cellular, Navigation

Gain

-0.2dBi, -1.4dBi, 1.1dBi, 0dBi, 0dBi, 2.1dBi, -2dBic, 3dBic, 4.4dBi, 1.7dBi, 1.5dBi, 4.8dBi, 2.2dBi, 4.7dBi, 2.6dBi, 5.8dBi

Ambalaj

Box

Frequency Range

617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz

Montaj Tipi

Panel Mount

Height Max

3.012" (76.50mm)

Frequency Centerband

657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.586GHz, 1.955GHz, 2.002GHz, 2.495GHz, 3.6GHz, 5.55GHz

Terminal

SMA Male (2)

Vswr

2

Antenna Type

Dome

Frequency Group

Wide Band

Applications

2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE

Özellikler

Cable - 5.18m

Power Max

50 W

Ingress Protection

IP67

Parça Durumu

Active

Number Of Bands

10
