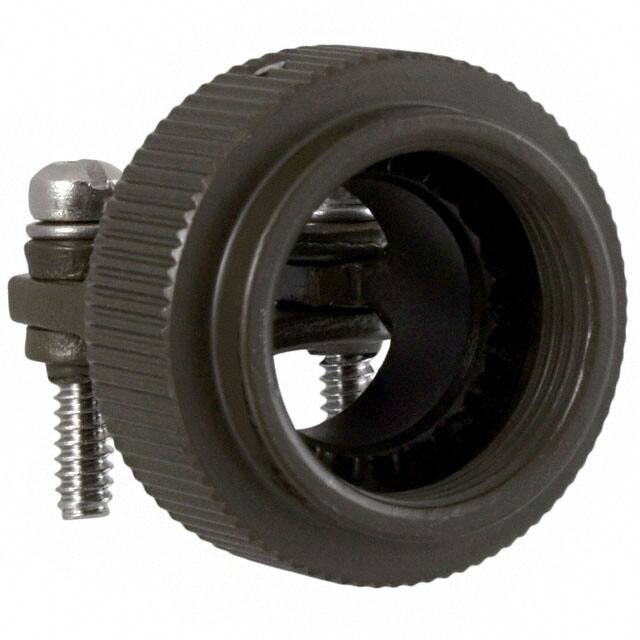

M85049/38S13W

Teknik Özellikler

REACH Uyumluluk Kodu

not_compliant

Üretici Parça No

M85049/38S13W

Reach Svhc

Unknown

Maks. Çalışma Sıcaklığı

175°C

Part Life Cycle Code

Active

Kılıf / Paket

Aluminum

Min. Çalışma Sıcaklığı

-65°C

Thread Size

M18x1

Tip

Cable Clamp

Uzunluk

33.27mm

Additional Feature

STANDARD: MIL-DTL-38999

Montaj

Cable

Yayın Yılı

2008

Fabrika Tedarik Süresi

10 Weeks

Connector Support Type

CONNECTOR ACCESSORY

Renk

Olive

Diameter Outside

1.160 (29.46mm)

Wirecable Diameter

8.33 mm

Orientation

Straight

Plating

Cadmium Nickel

Shell Size Insert

13

Shell Sizes

13

Cable Opening

0.190 ~ 0.330 (4.83mm ~ 8.38mm)

Rohs Code

No

Parça Durumu

Active

Din Conformance

NO

Özellikler

Clamp Screws, Self-Locking

Ihs Manufacturer

GLENAIR INC

Seri

Military, SAE AS85049

Military Connector Accessory Name

STRAIN RELIEF

Nem Hassasiyeti (MSL)

1 (Unlimited)

Risk Rank

2.31

RoHS Durumu

Non-RoHS Compliant

Associated Milspecs

MIL-DTL-38999

Shielding

Unshielded

Cable Exit

180°

Ambalaj

Bulk

Includes

5 pcs - 3 pc Cable Clamp, 2 Screws

Iec Conformance

NO

Body Material

Aluminium
