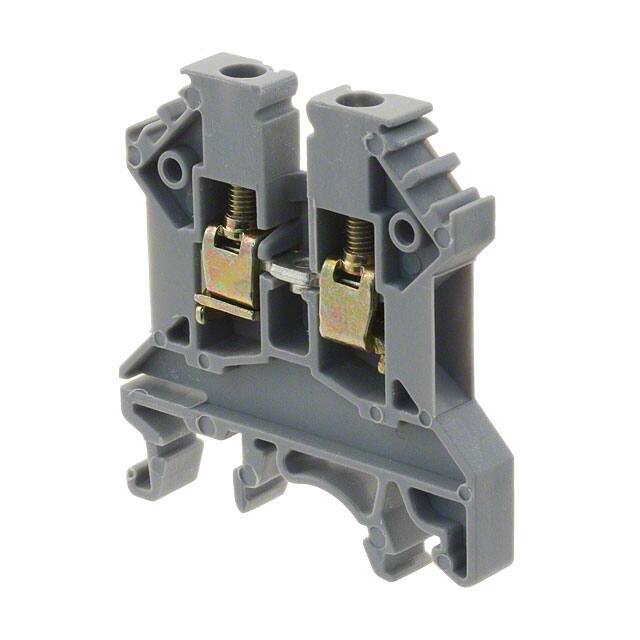

ATB4

Teknik Özellikler

Montaj

Through Hole

Housing Material

Polyamide

Voltageiec

800V

Gerilim

600V

Seri

ATB

Wire Gauge Min

10 AWG

Renk

Gray

Max Current Rating

40A

Wire Gauge Or Range Mm

0.5-4mm2

Terminal Width

6.0mm

Parça Durumu

Active

Terminal Stili

Screw

Fabrika Tedarik Süresi

8 Weeks

Tip

Feed Through

RoHS Durumu

RoHS Compliant

Akım

40A

Currentiec

32A

Wire Gauge Max

22 AWG

Wire Gauge Or Range Awg

10-22 AWG

Pozisyon Sayısı

2

Material Insulation

Polyamide (PA66), Nylon 6/6

Max Supply Voltage

600V

Number Of Levels

1

Stripping Length

9mm
