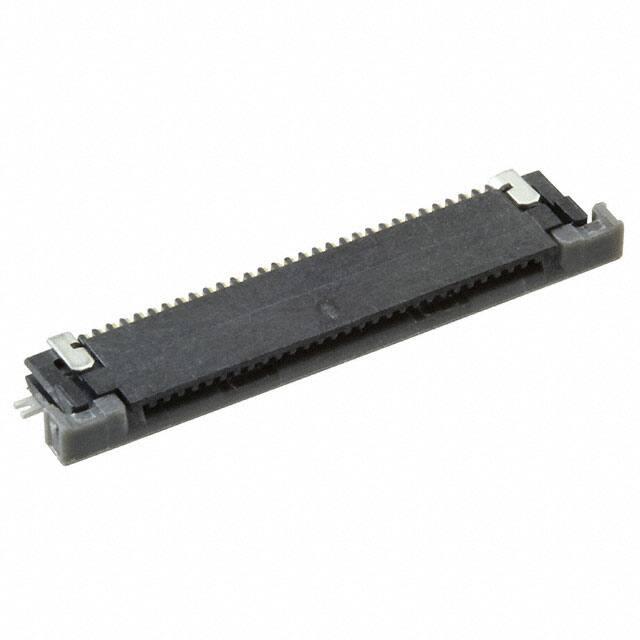

SFV30R-4STBE1HLF

Teknik Özellikler

Fabrika Tedarik Süresi

14 Weeks

Cable End Type

Notched

Gender

Receptacle

Insulation Resistance

100MOhm

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free

Height Above Board

0.071 1.80mm

Iec Conformance

NO

Contact Location

Top

Orientation

Horizontal

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Akım Değeri

500mA

Filter Feature

NO

Nominal Gerilim

50V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~105°C

Actuatorcolor

Gray

Total Number Of Contacts

30

Yayın Yılı

2011

Pozisyon Sayısı

30

Actuator Material

Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free

Contact Finish

Gold

Sıra Sayısı

1

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Ffc Fcb Thickness

0.33mm

Seri

SFV-R

Parça Durumu

Active

Housing Color

Black

Current Rating Amps

0.5A

Mixed Contacts

NO

Flat Flex Type

FPC

Din Conformance

NO

Ul Flammability Code

94V-0

Montaj

Surface Mount

Mating Cycles

20

Locking Feature

Slide Lock

Contact Materials

Phosphor Bronze

Flammability Rating

UL94 V-0
