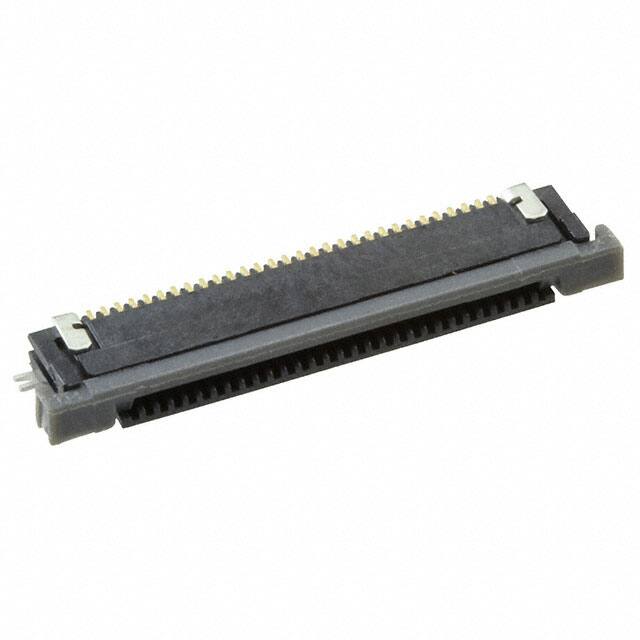

SFV30R-3STBE1HLF

Teknik Özellikler

Total Number Of Contacts

30

Actuatorcolor

Gray

Çalışma Sıcaklığı

-55°C~105°C

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Nominal Gerilim

50V

Filter Feature

NO

Akım Değeri

500mA

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Orientation

Horizontal

Contact Location

Bottom

Iec Conformance

NO

Height Above Board

0.071 1.80mm

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free

Insulation Resistance

100MOhm

Cable End Type

Notched

Contact Gender

FEMALE

Fabrika Tedarik Süresi

14 Weeks

Terminal

Solder

Ambalaj

Tape & Reel (TR)

Montaj Tipi

Surface Mount, Right Angle

Pitch

0.020 0.50mm

Flammability Rating

UL94 V-0

Contact Materials

Phosphor Bronze

Locking Feature

Slide Lock

Mating Cycles

20

Montaj

Surface Mount

Ul Flammability Code

94V-0

Din Conformance

NO

Flat Flex Type

FPC

Current Rating Amps

0.5A

Mixed Contacts

NO

Kurşunsuz

Lead Free

Housing Color

Black

Parça Durumu

Active

Seri

SFV-R

Ffc Fcb Thickness

0.33mm

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE
