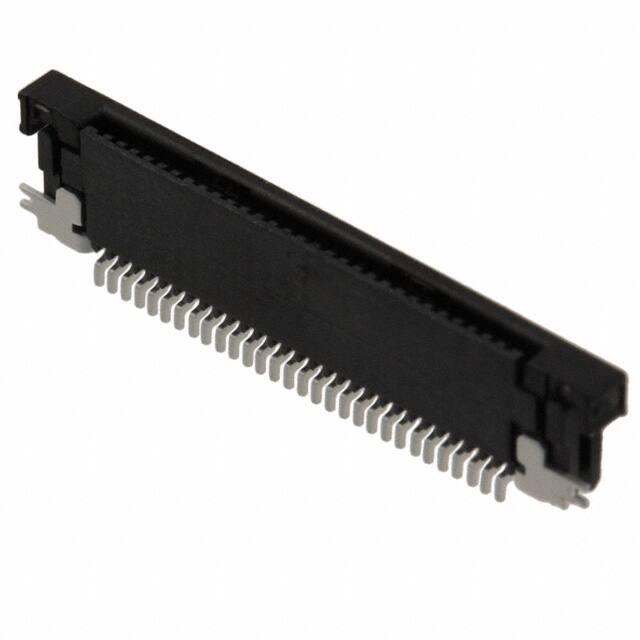

SFV30R-1STE1HLF

Teknik Özellikler

Depth

4.9mm

Pozisyon Sayısı

30

Actuator Material

Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free

Contact Finish

Tin

Sıra Sayısı

1

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Ffc Fcb Thickness

0.30mm 0.33mm

Seri

SFV-R

Parça Durumu

Active

Min. Çalışma Sıcaklığı

-55°C

Kurşunsuz

Lead Free

Housing Color

Black

Contact Resistance

30mOhm

Current Rating Amps

0.5A

Flat Flex Type

FFC, FPC

Montaj

Surface Mount

Mating Cycles

20

Locking Feature

Slide Lock

Wirecable Type

Flat

Contact Materials

Phosphor Bronze

Flammability Rating

UL94 V-0

Pitch

0.020 0.50mm

Ambalaj

Tape & Reel (TR)

Montaj Tipi

Surface Mount, Right Angle

Terminal

Solder

Max Voltage Rating Dc

50V

Fabrika Tedarik Süresi

14 Weeks

Cable End Type

Straight, Tapered

Contact Plating

Tin

Gender

Female

Maks. Çalışma Sıcaklığı

105°C

Insulation Resistance

100MOhm

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free

Height Above Board

0.071 1.80mm

Number Of Contacts

30

Contact Location

Bottom

Orientation

Right Angle

Özellikler

Solder Retention, Zero Insertion Force (ZIF)
