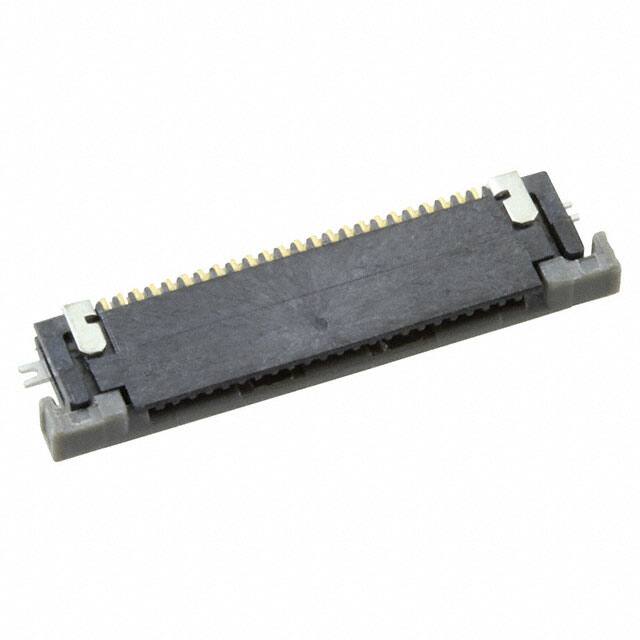

SFV24R-4STBE1HLF

Teknik Özellikler

Gender

Receptacle

Insulation Resistance

100MOhm

Fabrika Tedarik Süresi

14 Weeks

Cable End Type

Notched

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free

Height Above Board

0.071 1.80mm

Akım Değeri

500mA

Filter Feature

NO

Nominal Gerilim

50V

Iec Conformance

NO

Contact Location

Top

Orientation

Horizontal

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Total Number Of Contacts

24

Actuatorcolor

Gray

Yayın Yılı

2011

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~105°C

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Pozisyon Sayısı

24

Actuator Material

Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free

Contact Finish

Gold

Sıra Sayısı

1

Seri

SFV-R

Parça Durumu

Active

Housing Color

Black

Mixed Contacts

NO

Current Rating Amps

0.5A

Ffc Fcb Thickness

0.33mm

Locking Feature

Slide Lock

Flat Flex Type

FPC

Din Conformance

NO

Ul Flammability Code

94V-0

Montaj

Surface Mount

Mating Cycles

20

Flammability Rating

UL94 V-0

Pitch

0.020 0.50mm
