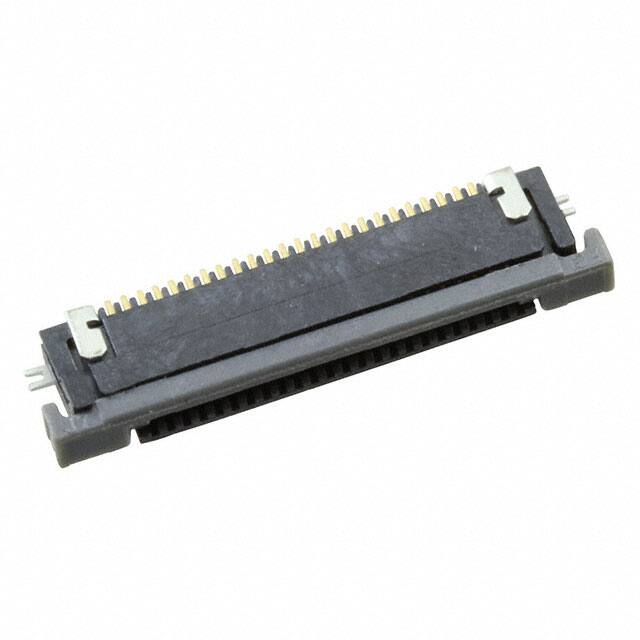

SFV24R-3STBE1HLF

Teknik Özellikler

Contact Gender

FEMALE

Cable End Type

Notched

Fabrika Tedarik Süresi

14 Weeks

Insulation Resistance

100MOhm

Height Above Board

0.071 1.80mm

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Orientation

Horizontal

Contact Location

Bottom

Iec Conformance

NO

Nominal Gerilim

50V

Filter Feature

NO

Akım Değeri

500mA

Çalışma Sıcaklığı

-55°C~105°C

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2011

Actuatorcolor

Gray

Total Number Of Contacts

24

Sıra Sayısı

1

Contact Finish

Gold

Actuator Material

Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free

Pozisyon Sayısı

24

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Ffc Fcb Thickness

0.33mm

Mixed Contacts

NO

Current Rating Amps

0.5A

Housing Color

Black

Parça Durumu

Active

Seri

SFV-R

Mating Cycles

20

Montaj

Surface Mount

Din Conformance

NO

Ul Flammability Code

94V-0

Flat Flex Type

FPC

Locking Feature

Slide Lock

Contact Materials

Phosphor Bronze

Terminal

Solder
