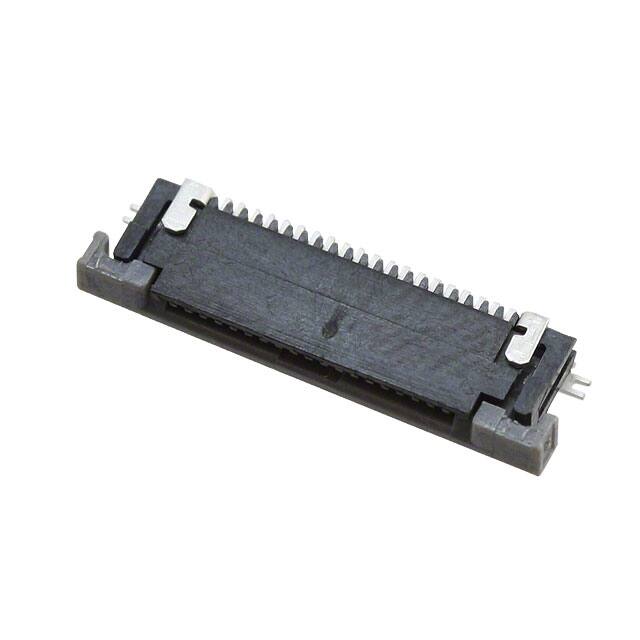

SFV20R-4STE1HLF

Teknik Özellikler

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Orientation

Right Angle

Contact Location

Top

Iec Conformance

NO

Nominal Gerilim

50V

Filter Feature

NO

Akım Değeri

500mA

Çalışma Sıcaklığı

-55°C~105°C

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Actuatorcolor

Gray

Total Number Of Contacts

20

Cable End Type

Notched

Contact Gender

FEMALE

Fabrika Tedarik Süresi

14 Weeks

Insulation Resistance

100MOhm

Height Above Board

0.071 1.80mm

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free

Montaj

Surface Mount

Din Conformance

NO

Ul Flammability Code

94V-0

Flat Flex Type

FPC

Locking Feature

Slide Lock

Contact Materials

Phosphor Bronze

Terminal

Solder

Montaj Tipi

Surface Mount, Right Angle

Ambalaj

Tape & Reel (TR)

Pitch

0.020 0.50mm

Flammability Rating

UL94 V-0

Sıra Sayısı

1

Actuator Material

Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free

Contact Finish

Tin

Pozisyon Sayısı

20

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Radyasyon Dayanımı

No

Ffc Fcb Thickness

0.33mm

Current Rating Amps

0.5A

Mixed Contacts

NO
