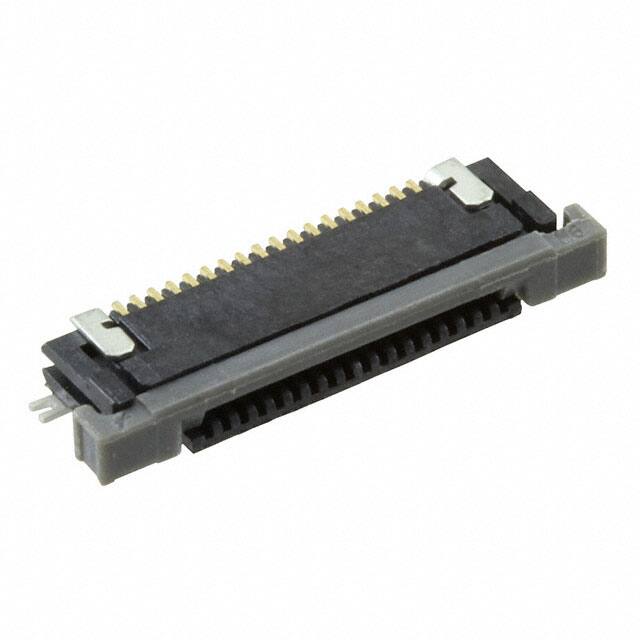

SFV18R-3STBE1HLF

Teknik Özellikler

Contact Location

Bottom

Iec Conformance

NO

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Orientation

Right Angle

Akım Değeri

500mA

Nominal Gerilim

50V

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-55°C~105°C

Mil Conformance

NO

Total Number Of Contacts

18

Actuatorcolor

Gray

Fabrika Tedarik Süresi

14 Weeks

Contact Gender

FEMALE

Cable End Type

Notched

Insulation Resistance

100MOhm

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free

Height Above Board

0.071 1.80mm

Ul Flammability Code

94V-0

Din Conformance

NO

Flat Flex Type

FPC

Mating Cycles

20

Montaj

Surface Mount

Locking Feature

Slide Lock

Contact Materials

Phosphor Bronze

Pitch

0.020 0.50mm

Flammability Rating

UL94 V-0

Terminal

Solder

Montaj Tipi

Surface Mount, Right Angle

Ambalaj

Tape & Reel (TR)

Contact Finish

Gold

Actuator Material

Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free

Pozisyon Sayısı

18

Sıra Sayısı

1

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Ffc Fcb Thickness

0.33mm

Parça Durumu

Active
