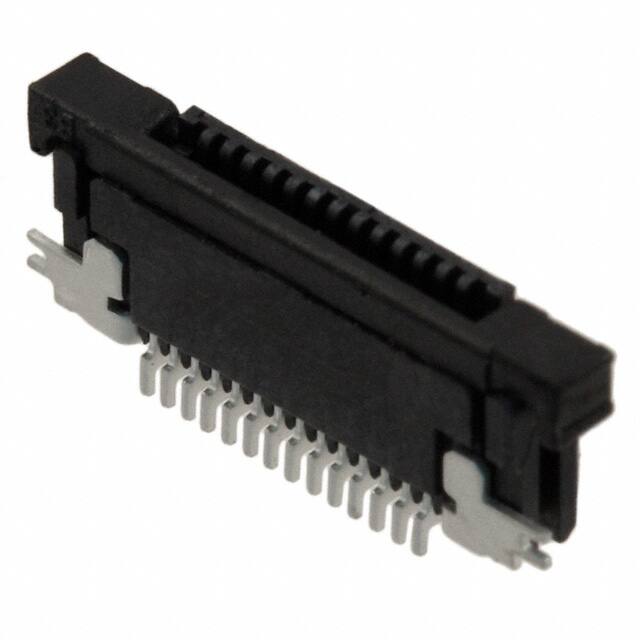

SFV14R-2STE1HLF

Teknik Özellikler

Number Of Pcb Rows

1

Mil Conformance

NO

Parça Durumu

Active

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Contact Location

Top

Total Number Of Contacts

14

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Flammability Rating

UL94 V-0

Pitch

0.020 0.50mm

Body Breadth

0.07 inch

Seri

SFV-R

Fabrika Tedarik Süresi

14 Weeks

Contact Pattern

RECTANGULAR

Wirecable Type

Straight

Kurşunsuz Kodu

yes

Cable End Type

Straight, Tapered

Uzunluk

12.5mm

Flat Flex Type

FFC, FPC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

RoHS Durumu

RoHS Compliant

Yayın Yılı

2010

Montaj

Surface Mount

Gender

Receptacle

Material Flammability Rating

UL94 V-0

Ffc Fcb Thickness

0.30mm 0.33mm

Contact Finish

Tin

Çalışma Sıcaklığı

-55°C~105°C

Sıra Sayısı

1

Filter Feature

NO

Current Rating Amps

0.5A

Radyasyon Dayanımı

No

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free

Terminal

Solder

Housing Color

Black

Depth

4.9mm

Connector Type

FFC/FPC CONNECTOR

Contact Materials

Phosphor Bronze
