Teknik Özellikler
- Actuator Material
- Polyphenylene Sulfide (PPS), Glass Filled
- Ambalaj
- Tape & Reel (TR)
- ECCN Kodu
- EAR99
- Din Conformance
- NO
- Akım Değeri
- 500mA
- Orientation
- Right Angle
- Locking Feature
- Slide Lock
- Height Above Board
- 0.071 1.80mm
- Iec Conformance
- NO
- Contact Resistance
- 30mOhm
- Insulation Resistance
- 100MOhm
- Current Rating Amps
- 0.5A
- Sıra Sayısı
- 1
- Filter Feature
- NO
- Çalışma Sıcaklığı
- -55°C~105°C
- Pozisyon Sayısı
- 12
- Terminal
- Solder
- Housing Color
- Black
- Housing Material
- Polyamide (PA), Nylon, Glass Filled

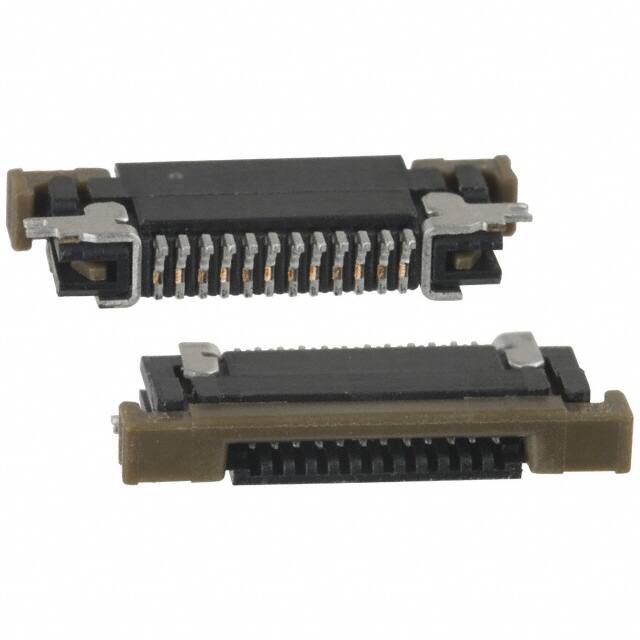

- Connector Type
- FFC/FPC CONNECTOR
- Contact Materials
- Phosphor Bronze
- Depth
- 4.2mm
- Additional Feature
- SIDE ENTRY
- Option
- GENERAL PURPOSE
- Kurşunsuz
- Lead Free
- Max Voltage Rating Ac
- 50V
- Seri
- SFV-R
- REACH Uyumluluk Kodu
- unknown
- Flat Flex Type
- FFC, FPC
- Uzunluk
- 11.5mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Mixed Contacts
- NO
- Wirecable Type
- Straight
- Cable End Type
- Straight, Tapered
- Actuatorcolor
- Brown
- RoHS Durumu
- RoHS Compliant
- Montaj
- Surface Mount
- Yayın Yılı
- 2007
- Max Voltage Rating Dc
- 50V
- Ffc Fcb Thickness
- 0.30mm 0.33mm
