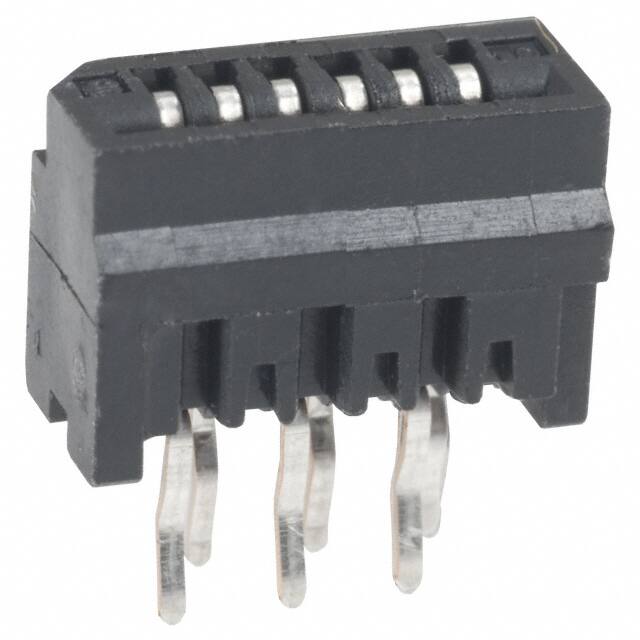

HLW6S-2C7LF

Teknik Özellikler

Sıra Sayısı

1

Contact Location

Top

Additional Feature

POLARIZED

Seri

HLW-S

Akım Değeri

1A

Cable End Type

Straight or Tapered

Filter Feature

NO

Mating Cycles

30

Total Number Of Contacts

6

JESD-609 Kodu

e3

Iec Conformance

NO

Kurşunsuz

Lead Free

Ffc Fcb Thickness

0.30mm

Contact Materials

Phosphor Bronze

Terminal

Kinked Pin

Yayın Yılı

2007

Max Voltage Rating Ac

100V

Height Above Board

0.232 5.90mm

Contact Resistance

30mOhm

Material Flammability Rating

UL94 V-0

Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Genişlik

3.9mm

Din Conformance

NO

Radyasyon Dayanımı

No

Kurşunsuz Kodu

yes

Housing Color

Black

Insulation Resistance

500MOhm

Option

GENERAL PURPOSE

Connector Type

FFC/FPC CONNECTOR

Depth

3.9mm

Housing Material

Polybutylene Terephthalate (PBT), Glass Filled

Pitch

0.039 1.00mm

Uzunluk

8.6mm

Flat Flex Type

FFC, FPC

Reach Svhc

No SVHC

Montaj Tipi

Through Hole

Ul Flammability Code

94V-0

Orientation

Straight

Montaj

Through Hole
