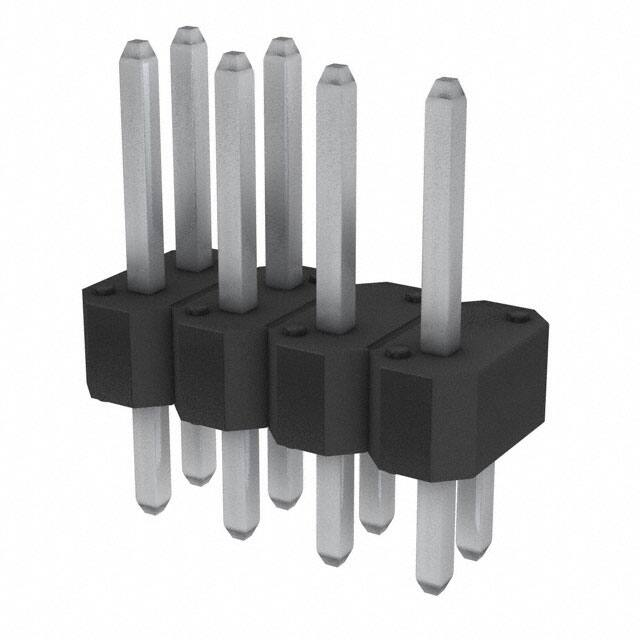

75880-336LF

Teknik Özellikler

Pitch

2.54mm

Style

Board to Board or Cable

Contact Type

Male Pin

Overall Contact Length

0.445 11.30mm

Contact Shape

Square

Pitch Mating

0.100 2.54mm

Number Of Positions Loaded

6

Insulation Color

Black

Pozisyon Sayısı

8

Connector Type

Header

Depth

4.83mm

Fabrika Tedarik Süresi

8 Weeks

Housing Material

Thermoplastic

Renk

Black

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Ambalaj

Bulk

Montaj Tipi

Through Hole

Terminal

Solder

Kurşunsuz

Lead Free

Housing Color

Black

Number Of Contacts

6

Contact Materials

Phosphor Bronze

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.100 2.54mm

Uzunluk

15.24mm

Contact Lengthmating

0.225 5.72mm

Montaj

Through Hole

Seri

BERGSTIK®

Row Spacing Mating

0.100 (2.54mm)

Contact Length Post

0.119 3.02mm

Radyasyon Dayanımı

No

RoHS Durumu

RoHS Compliant

Contact Plating

Tin

Contact Finish Thickness Mating

78.7μin 2.00μm

Contact Finish Mating

Tin

Orientation

Straight

Insulation Materials

Thermoplastic

Shrouding

Unshrouded

Sıra Sayısı

2
