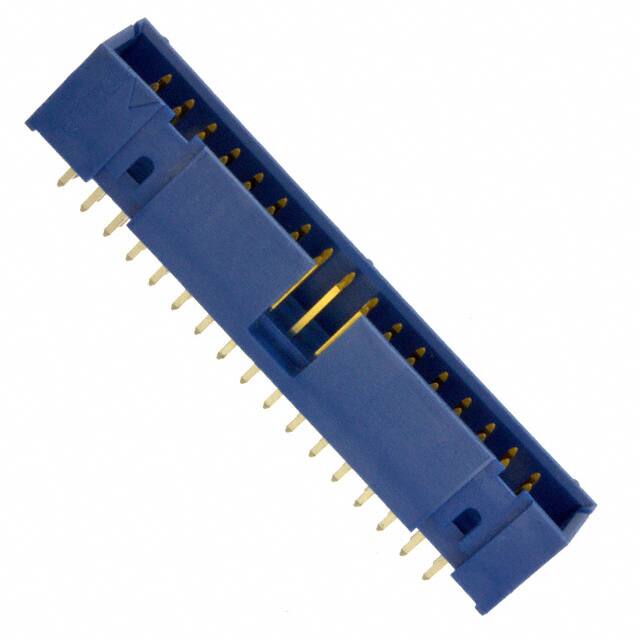

75869-106LF

Teknik Özellikler

Montaj Tipi

Through Hole

Parça Durumu

Active

Depth

9.55mm

Number Of Poles

34

Fabrika Tedarik Süresi

6 Weeks

Pozisyon Sayısı

34

Insulation Color

Blue

Connector Type

Header

Mating Post Length

6mm

Contact Type

Male Pin

Gender

Male

Pitch

2.54mm

Fastening Type

Push-Pull

Sıra Sayısı

2

Shrouding

Shrouded - 4 Wall

Insulation Materials

Thermoplastic, Glass Filled

Maks. Çalışma Sıcaklığı

125°C

Contact Plating

Gold

RoHS Durumu

RoHS Compliant

Orientation

Straight

Lead Pitch

2.54mm

Radyasyon Dayanımı

No

Contact Finish Thickness Post

78.7μin 2.00μm

Max Voltage Rating Ac

500V

Insulation Height

0.377 9.57mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Housing Color

Blue

Number Of Contacts

34

Reach Svhc

No SVHC

Ambalaj

Tube

Material Flammability Rating

UL94 V-0

Housing Material

Thermoplastic

Renk

Blue

Lead Length

3.05mm

Number Of Positions Loaded

All

Hole Diameter

1 mm

Contact Finish Post

Tin

Contact Shape

Square

Pitch Mating

0.100 2.54mm
