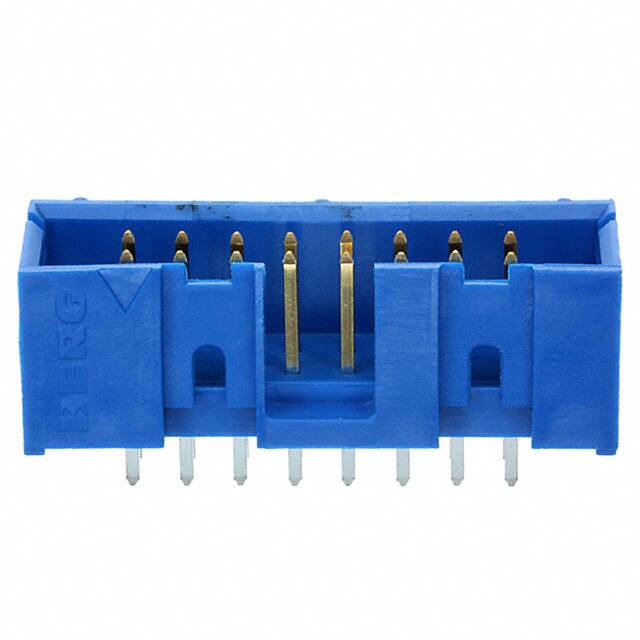

75869-103LF

Teknik Özellikler

Montaj Tipi

Through Hole

Parça Durumu

Active

Ambalaj

Tube

Material Flammability Rating

UL94 V-0

Renk

Blue

Fabrika Tedarik Süresi

6 Weeks

Connector Type

Header

Insulation Color

Blue

Pozisyon Sayısı

16

Contact Finish Post

Tin

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Contact Shape

Square

Contact Type

Male Pin

Style

Board to Cable/Wire

Gender

Male

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

2

Fastening Type

Push-Pull

Insulation Resistance

100GOhm

Insulation Materials

Thermoplastic, Glass Filled

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Finish Mating

Gold, GXT™

RoHS Durumu

RoHS Compliant

Contact Plating

Gold

Lead Pitch

2.54mm

Özellikler

Keying Slot

Contact Length Post

0.120 3.05mm

Row Spacing Mating

0.100 (2.54mm)

Seri

Quickie™

Contact Finish Thickness Post

78.7μin 2.00μm

Yayın Yılı

2005

Contact Lengthmating

0.236 6.00mm

Insulation Height

0.377 9.57mm

Akım Değeri

1A

Contact Materials

Phosphor Bronze

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Contacts

16

Terminal

Solder

Kurşunsuz

Lead Free
