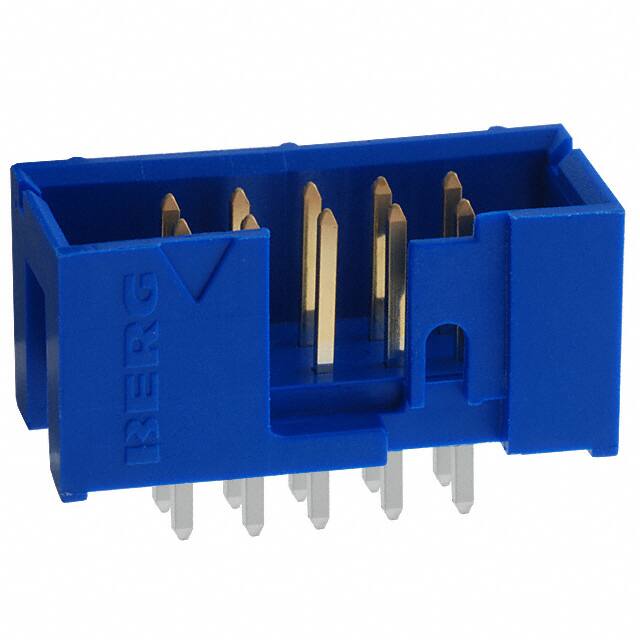

75869-101LF

Teknik Özellikler

Ambalaj

Tube

Parça Durumu

Active

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

6 Weeks

Renk

Blue

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Contact Finish Post

Tin

Pozisyon Sayısı

10

Insulation Color

Blue

Connector Type

Header

Gender

Male

Style

Board to Cable/Wire

Contact Type

Male Pin

Pitch Mating

0.100 2.54mm

Contact Shape

Square

Insulation Materials

Thermoplastic, Glass Filled

Insulation Resistance

100GOhm

Fastening Type

Push-Pull

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

2

Lead Pitch

2.54mm

Contact Plating

Gold

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Gold, GXT™

Contact Finish Thickness Mating

30.0μin 0.76μm

Insulation Height

0.377 9.57mm

Contact Lengthmating

0.236 6.00mm

Yayın Yılı

2005

Contact Finish Thickness Post

78.7μin 2.00μm

Özellikler

Keying Slot

Contact Length Post

0.120 3.05mm

Row Spacing Mating

0.100 (2.54mm)

Seri

Quickie™

Kurşunsuz

Lead Free

Terminal

Solder

Number Of Contacts

10

Contact Materials

Phosphor Bronze

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

1A
