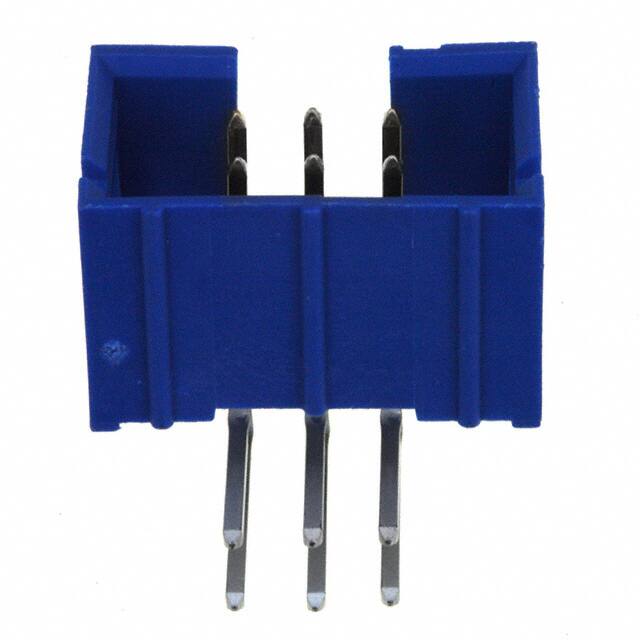

75867-131LF

Teknik Özellikler

Mating Post Length

6mm

Insulation Color

Blue

Pozisyon Sayısı

6

Connector Type

Header

Pitch

2.54mm

Gender

Male

Contact Type

Male Pin

Parça Durumu

Active

Montaj Tipi

Through Hole, Right Angle

Fabrika Tedarik Süresi

6 Weeks

Depth

13.91mm

Insulation Height

0.362 9.20mm

Yayın Yılı

2008

Contact Finish Thickness Post

78.7μin 2.00μm

Max Voltage Rating Ac

500V

Reach Svhc

No SVHC

Number Of Contacts

6

Housing Color

Blue

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Thermoplastic, Glass Filled

Maks. Çalışma Sıcaklığı

125°C

Sıra Sayısı

2

Shrouding

Shrouded - 4 Wall

Fastening Type

Push-Pull

Radyasyon Dayanımı

No

RoHS Durumu

RoHS Compliant

Contact Plating

Gold

Orientation

Right Angle

Number Of Positions Loaded

All

Lead Length

3.05mm

Contact Finish Post

Tin

Min. Çalışma Sıcaklığı

-65°C

Style

Board to Cable/Wire

Contact Shape

Square

Pitch Mating

0.100 2.54mm

Ambalaj

Tube

Nominal Gerilim

500V

Housing Material

Thermoplastic

Renk

Blue

Material Flammability Rating

UL94 V-0
