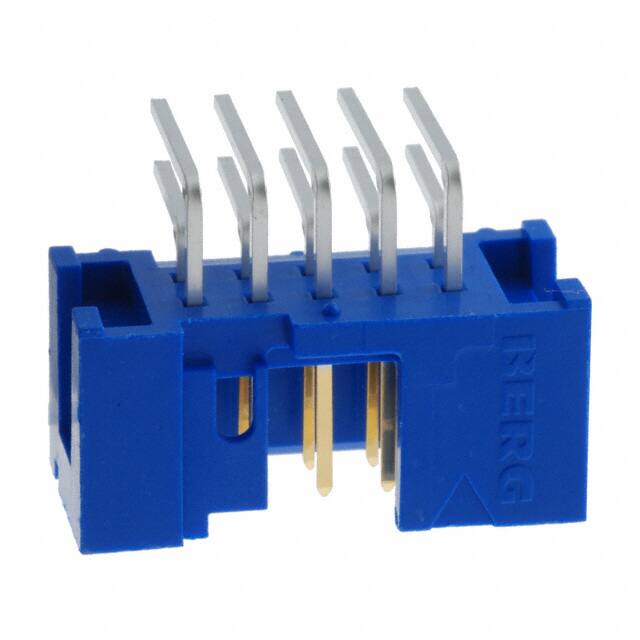

75867-101LF

Teknik Özellikler

Depth

13.91mm

Number Of Poles

10

Fabrika Tedarik Süresi

6 Weeks

Montaj Tipi

Through Hole, Right Angle

Parça Durumu

Active

Contact Type

Male Pin

Gender

Male

Pitch

2.54mm

Pozisyon Sayısı

10

Insulation Color

Blue

Connector Type

Header

Mating Post Length

6mm

Contact Plating

Gold

RoHS Durumu

RoHS Compliant

Orientation

Right Angle

Radyasyon Dayanımı

No

Lead Pitch

2.54mm

Fastening Type

Push-Pull

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

2

Insulation Materials

Thermoplastic, Glass Filled

Maks. Çalışma Sıcaklığı

125°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Reach Svhc

No SVHC

Number Of Contacts

10

Housing Color

Blue

Contact Finish Thickness Post

78.7μin 2.00μm

Max Voltage Rating Ac

500V

Insulation Height

0.362 9.20mm

Material Flammability Rating

UL94 V-0

Nominal Gerilim

500V

Renk

Blue

Housing Material

Thermoplastic

Ambalaj

Tube

Contact Shape

Square

Pitch Mating

0.100 2.54mm

Min. Çalışma Sıcaklığı

-65°C

Style

Board to Cable/Wire

Lead Length

3.05mm
