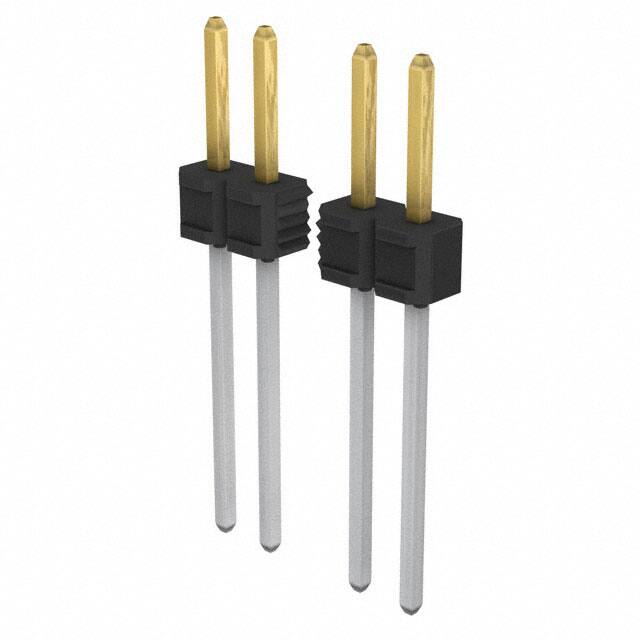

75160-106-36LF

Teknik Özellikler

Number Of Positions Loaded

All

Insulation Materials

Thermoplastic

Style

Board to Board

Contact Plating

GXT, Gold

Mating Post Length

5.72mm

Sıra Sayısı

1

Insulation Resistance

5GOhm

Housing Color

Black

Uzunluk

91.44mm

Contact Finish Thickness Mating

30.0μin 0.76μm

Number Of Contacts

36

Connector Type

Header

Contact Type

Male Pin

Pitch

2.54mm

Insulation Color

Black

Contact Finish Mating

Gold, GXT™

Fabrika Tedarik Süresi

8 Weeks

Material Flammability Rating

UL94 V-0

Pitch Mating

0.100 2.54mm

Akım Değeri

3A

Insulation Height

0.100 2.54mm

Montaj Tipi

Through Hole

Fastening Type

Push-Pull

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Lengthmating

0.225 5.72mm

Contact Length Post

0.500 12.70mm

Orientation

Straight

Nominal Gerilim

1.5kV

Kurşunsuz

Lead Free

Housing Material

Thermoplastic

Ambalaj

Bulk

Parça Durumu

Active

Seri

BERGSTIK®

Renk

Black

Montaj

Through Hole

Contact Materials

Phosphor Bronze

Overall Contact Length

0.825 20.95mm

Lead Length

12.7mm

Pozisyon Sayısı

36

Depth

2.8mm
