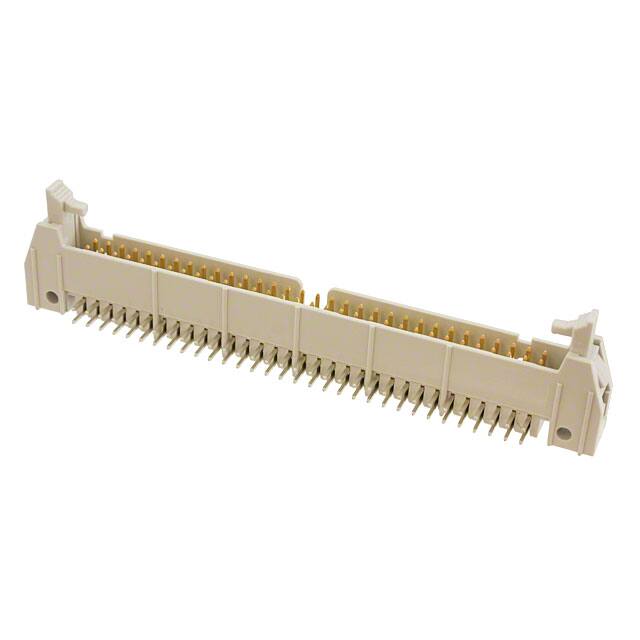

71922-264LF

Teknik Özellikler

Number Of Positions Loaded

All

Yayın Yılı

2015

Kurşunsuz

Lead Free

Insulation Color

Gray

Contact Finish Post

Tin

Contact Shape

Square

Özellikler

Keying Slot, Mounting Flange

Lead Length

2.9mm

Contact Lengthmating

0.228 5.80mm

Contact Type

Male Pin

Seri

Quickie™

Number Of Contacts

64

Montaj Tipi

Through Hole, Right Angle

Renk

Grey

Contact Length Post

0.114 2.90mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

24mm

Min. Çalışma Sıcaklığı

-65°C

Ambalaj

Tube

Contact Finish Mating

Gold, GXT™

Pitch Mating

0.100 2.54mm

RoHS Durumu

RoHS Compliant

Maks. Çalışma Sıcaklığı

125°C

Contact Finish Thickness Post

78.7μin 2.00μm

Uzunluk

100.58mm

Gender

Male

Connector Type

Header

Pozisyon Sayısı

64

Contact Plating

GXT, Gold

Insulation Height

0.339 8.61mm

Montaj

Through Hole

Parça Durumu

Active

Fabrika Tedarik Süresi

6 Weeks

Material Flammability Rating

UL94 V-0

Pitch

2.54mm

Insulation Materials

Thermoplastic, Glass Filled

Housing Material

Thermoplastic

Row Spacing Mating

0.100 (2.54mm)

Mating Post Length

5.8mm

Contact Finish Thickness Mating

30.0μin 0.76μm
