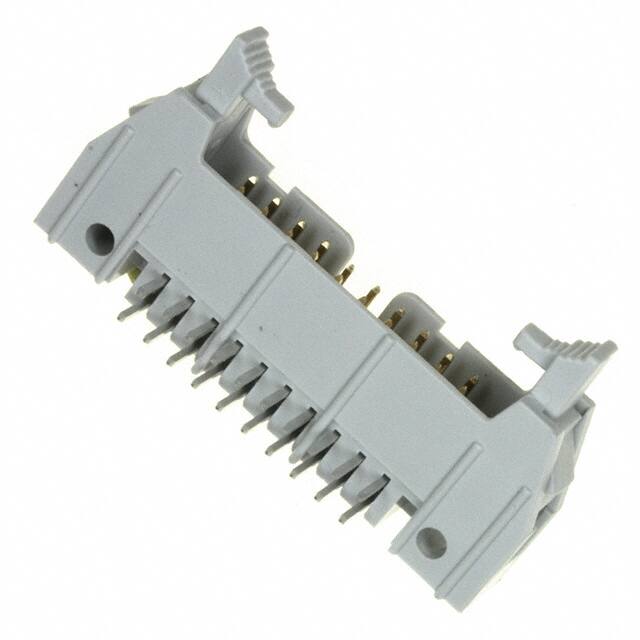

71922-220LF

Teknik Özellikler

Contact Finish Mating

Gold, GXT™

Pitch Mating

0.100 2.54mm

RoHS Durumu

RoHS Compliant

Maks. Çalışma Sıcaklığı

125°C

Contact Finish Thickness Post

78.7μin 2.00μm

Kurşunsuz

Lead Free

Insulation Color

Gray

Contact Finish Post

Tin

Contact Shape

Square

Number Of Positions Loaded

All

Contact Type

Male Pin

Özellikler

Keying Slot, Mounting Flange

Lead Length

2.9mm

Contact Lengthmating

0.228 5.80mm

Number Of Contacts

20

Montaj Tipi

Through Hole, Right Angle

Radyasyon Dayanımı

No

Seri

Quickie™

Depth

24mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Min. Çalışma Sıcaklığı

-65°C

Renk

Grey

Contact Length Post

0.114 2.90mm

Row Spacing Mating

0.100 (2.54mm)

Insulation Materials

Thermoplastic, Glass Filled

Housing Material

Thermoplastic

Contact Finish Thickness Mating

30.0μin 0.76μm

Mating Post Length

5.8mm

Style

Board to Cable/Wire

Max Voltage Rating Ac

1.5kV

Orientation

Right Angle

Housing Color

Grey

Contact Materials

Phosphor Bronze

Terminal

Solder

Fastening Type

Latch Lock/Eject Hooks, Short

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

2

Uzunluk

44.7mm

Pozisyon Sayısı

20
