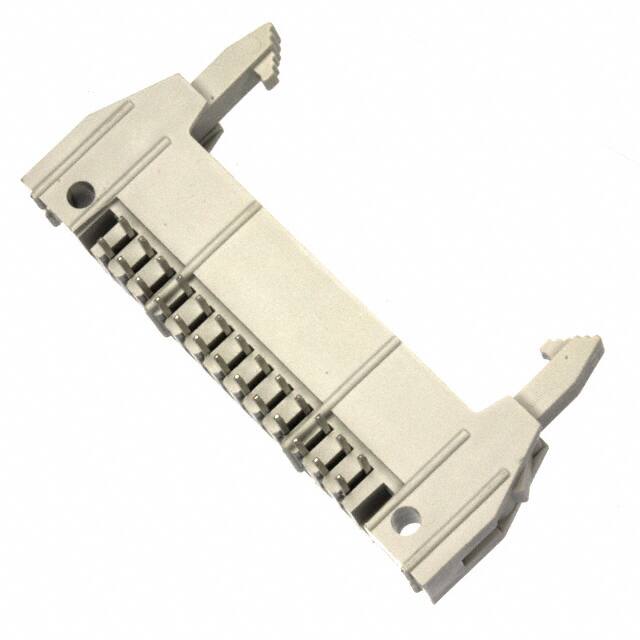

71922-126LF

Teknik Özellikler

Terminal

Solder

Hole Diameter

1 mm

Shrouding

Shrouded - 4 Wall

Fastening Type

Latch Lock/Eject Hooks

Sıra Sayısı

2

Max Voltage Rating Ac

1.5kV

Style

Board to Cable/Wire

Orientation

Right Angle

Flammability Rating

UL94 V-0

Housing Color

Grey

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

30.0μin 0.76μm

Mating Post Length

5.8mm

Akım Değeri

1A

Row Spacing Mating

0.100 (2.54mm)

Lead Pitch

2.54mm

Insulation Materials

Thermoplastic, Glass Filled

Housing Material

Thermoplastic

Parça Durumu

Active

Pitch

2.54mm

Fabrika Tedarik Süresi

6 Weeks

Material Flammability Rating

UL94 V-0

Insulation Height

0.339 8.61mm

Montaj

Through Hole

Contact Plating

Gold

Nominal Gerilim

1.5kV

Pozisyon Sayısı

26

Gender

Male

Connector Type

Header

Reach Svhc

No SVHC

Uzunluk

52.32mm

Insulation Resistance

100GOhm

Onay Kuruluşu

CSA, UL

Contact Finish Thickness Post

78.7μin 2.00μm

RoHS Durumu

RoHS Compliant

Pitch Mating

0.100 2.54mm

Maks. Çalışma Sıcaklığı

125°C

Contact Gender

Male

Contact Finish Mating

Gold, GXT™

Number Of Poles

26
