Adet bazlı fiyat
- 1+ adet$1.44
- 10+ adet$1.35
- 100+ adet$1.28
- 500+ adet$1.21
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

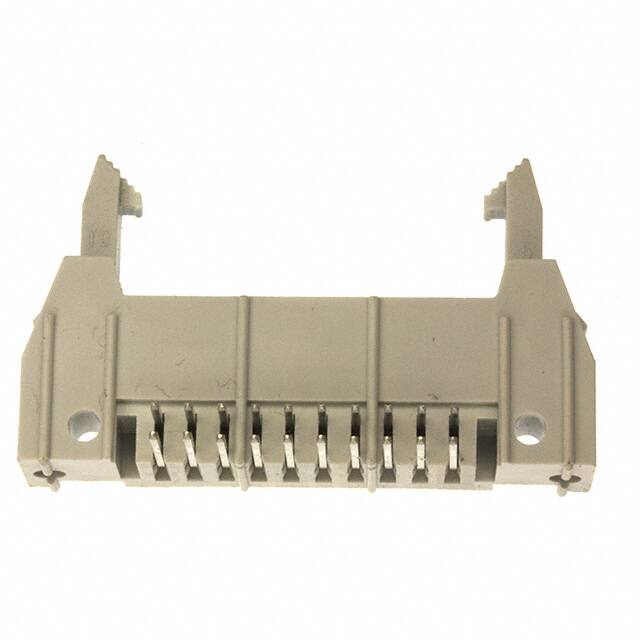

Teknik Özellikler
- Kurşunsuz
- Lead Free
- Contact Finish Post
- Tin
- Contact Shape
- Square
- Insulation Color
- Gray
- Yayın Yılı
- 2008
- Number Of Positions Loaded
- All
- Contact Type
- Male Pin
- Pozisyon Sayısı
- 20
- Özellikler
- Keying Slot, Mounting Flange
- Gender
- Male
- Contact Lengthmating
- 0.228 5.80mm
- Connector Type
- Header
- Contact Plating
- Gold
- Number Of Contacts
- 20
- Montaj Tipi
- Through Hole, Right Angle
- Seri
- Quickie™
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 6 Weeks
- Material Flammability Rating
- UL94 V-0
- Ambalaj
- Tube
- Insulation Height
- 0.339 8.61mm
- Contact Length Post
- 0.114 2.90mm
- Row Spacing Mating
- 0.100 (2.54mm)
- Insulation Materials
- Thermoplastic, Glass Filled
- Contact Finish Mating
- Gold, GXT™
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Pitch Mating
- 0.100 2.54mm
- Style
- Board to Cable/Wire
- RoHS Durumu
- RoHS Compliant
- Contact Materials
- Phosphor Bronze
- Terminal
- Solder
- Fastening Type
- Latch Lock/Eject Hooks
- Shrouding
- Shrouded - 4 Wall
- Sıra Sayısı
- 2
- Contact Finish Thickness Post
- 78.7μin 2.00μm
