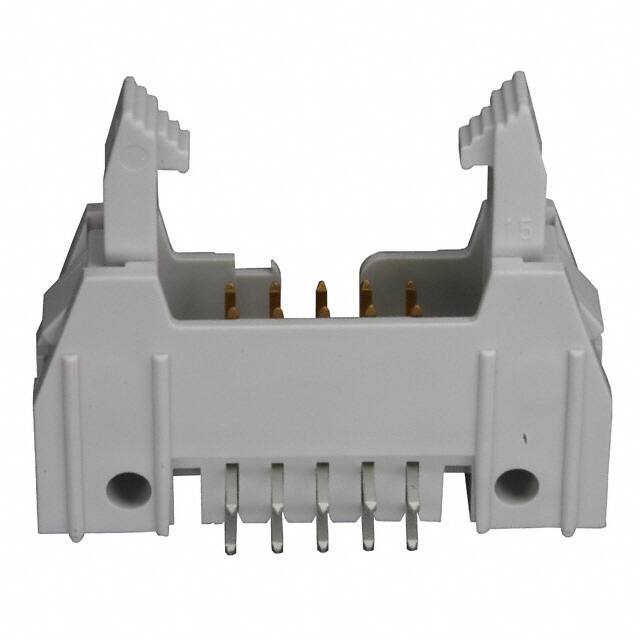

71922-110LF

Teknik Özellikler

Row Spacing Mating

0.100 (2.54mm)

Lead Pitch

2.54mm

Housing Material

Thermoplastic

Insulation Materials

Thermoplastic, Glass Filled

Contact Finish Thickness Mating

30.0μin 0.76μm

Mating Post Length

5.8mm

Akım Değeri

3A

Orientation

Right Angle

Max Voltage Rating Ac

1.5kV

Style

Board to Cable/Wire

Housing Color

Grey

Contact Materials

Phosphor Bronze

Flammability Rating

UL94 V-0

Shrouding

Shrouded - 4 Wall

Hole Diameter

1 mm

Fastening Type

Latch Lock/Eject Hooks

Terminal

Solder

Sıra Sayısı

2

Uzunluk

32mm

Pozisyon Sayısı

10

Connector Type

Header

Reach Svhc

No SVHC

Gender

Male

Contact Plating

Gold

Nominal Gerilim

1.5kV

Pitch

2.54mm

Fabrika Tedarik Süresi

6 Weeks

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Montaj

Through Hole

Insulation Height

0.339 8.61mm

Number Of Poles

10

Contact Finish Mating

Gold, GXT™

Maks. Çalışma Sıcaklığı

125°C

RoHS Durumu

RoHS Compliant

Pitch Mating

0.100 2.54mm

Insulation Resistance

100GOhm

Contact Finish Thickness Post

78.7μin 2.00μm

Onay Kuruluşu

CSA, UL

Insulation Color

Gray
