Adet bazlı fiyat
- 1+ adet$0.86
- 10+ adet$0.81
- 100+ adet$0.77
- 500+ adet$0.72
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

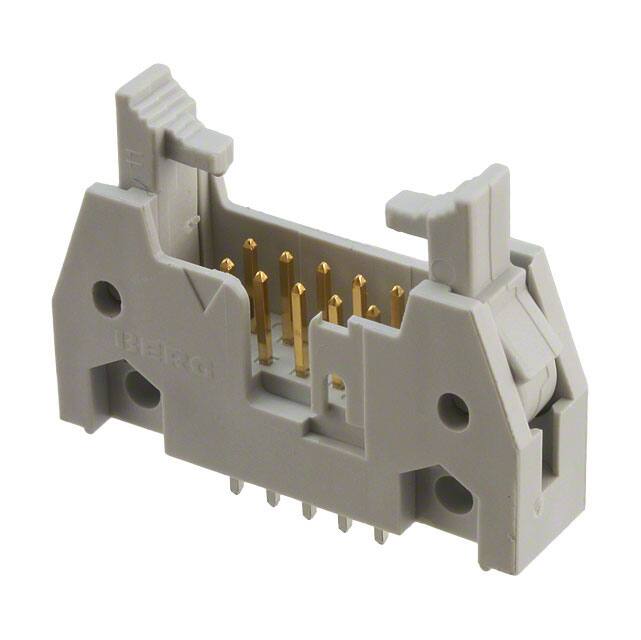

Teknik Özellikler
- Housing Material
- Thermoplastic
- Insulation Materials
- Thermoplastic, Glass Filled
- Row Spacing Mating
- 0.100 (2.54mm)
- Mating Post Length
- 5.8mm
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Housing Color
- Grey
- Contact Materials
- Phosphor Bronze
- Max Voltage Rating Ac
- 1.5kV
- Style
- Board to Cable/Wire
- Orientation
- Straight
- Sıra Sayısı
- 2
- Terminal
- Solder
- Shrouding
- Shrouded - 4 Wall
- Fastening Type
- Latch Lock/Eject Hooks, Short
- Uzunluk
- 32mm
- Gender
- Male
- Connector Type
- Header
- Pozisyon Sayısı
- 10
- Contact Plating
- Gold
- Insulation Height
- 0.685 17.40mm
- Montaj
- Through Hole
- Parça Durumu
- Active
- Pitch
- 2.54mm
- Material Flammability Rating
- UL94 V-0
- Fabrika Tedarik Süresi
- 6 Weeks
- Contact Finish Mating
- Gold, GXT™
- RoHS Durumu
- RoHS Compliant
- Pitch Mating
- 0.100 2.54mm
- Maks. Çalışma Sıcaklığı
- 125°C
- Contact Finish Thickness Post
- 78.7μin 2.00μm
- Yayın Yılı
- 2015
- Number Of Positions Loaded
- All
- Insulation Color
- Gray
- Contact Finish Post
- Tin
- Contact Shape
- Square
- Kurşunsuz
- Lead Free
- Lead Length
- 2.9mm
- Özellikler
- Keying Slot, Mounting Flange
- Contact Lengthmating
- 0.228 5.80mm
- Contact Type
- Male Pin
