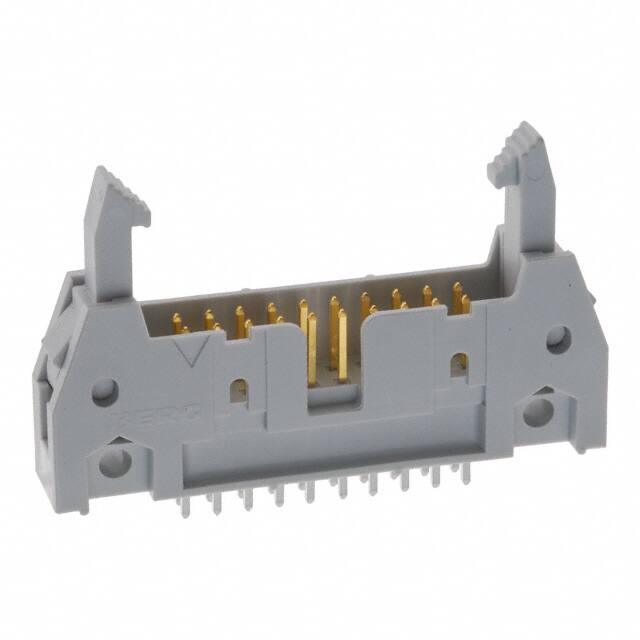

71918-120LF

Teknik Özellikler

Contact Plating

Gold

Nominal Gerilim

1.5kV

Parça Durumu

Active

Pitch

2.54mm

Fabrika Tedarik Süresi

6 Weeks

Material Flammability Rating

UL94 V-0

Insulation Height

0.685 17.40mm

Montaj

Through Hole

Pin Sayısı

20

Uzunluk

44.7mm

Pozisyon Sayısı

20

Gender

Male

Connector Type

Header

Reach Svhc

No SVHC

Max Voltage Rating Ac

1.5kV

Style

Board to Cable/Wire

Orientation

Straight

Flammability Rating

UL94 V-0

Contact Materials

Phosphor Bronze

Housing Color

Grey

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Hole Diameter

1 mm

Fastening Type

Latch Lock/Eject Hooks

Sıra Sayısı

2

Row Spacing Mating

0.100 (2.54mm)

Lead Pitch

2.54mm

Housing Material

Thermoplastic

Insulation Materials

Thermoplastic, Glass Filled

Contact Finish Thickness Mating

30.0μin 0.76μm

Akım Değeri

1A

Mating Post Length

5.8mm

Number Of Contacts

20

Genişlik

8.6mm

Radyasyon Dayanımı

No

Montaj Tipi

Through Hole

Seri

Quickie™

Depth

8.6mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube
